Bullet 12MP Ultra HD IP Camera

Model : IP-B12MVFC

Camera
Image Sensor	1/1.7” 12Megapixel CMOS
Effective Pixels	4000(H)x3000(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/10000s
Min. Illumination	0.05Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio	More than 50dB
Video Output	1 channel BNC（1.0Vp-p,75Ω）
Camera Features
Max. IR LEDs Length	50m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
EIS	Support
Ultra Defog	Support
Smart Focus	Auto focus
Lens
Focal Length	4.1-16.4mm
Max Aperture	F1.53
Focus Control	Manual
Angle of View	H: 84.5 ˚~ 34 ˚
Lens Type	Zoom lens/Auto Iris
Video
Compression	H.264/H.264B/H.264H/ MJPEG
Resolution	12M(4000x3000)/8M(4096×2160)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate
Main Stream	12M(1~15fps)/8M(4096x2160) (1~25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Third Stream	1080P/720P/D1(1 ~ 25/30fps)
Bit Rate	H.264: 32Kbps~ 16Mbps
ROI	Up to 4 areas

Audio
Compression	G.711a / G.711u/AAC
Interface	1/1 channel In/Out
Smart Function
Smart detection	Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Defocus detect, Face detect
Network
Ethernet	RJ-45 (10/100/1000Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 128GB
RS485	N/A
Alarm	2/1 channel In/Out
General
Power Supply	DC12V(AC24V optional), PoE (802.3at)
Power Consumption	Max24W (IR on)
Working Environment	-30°C~+60°C, Less than 95% RH
Ingress Protection	IP67

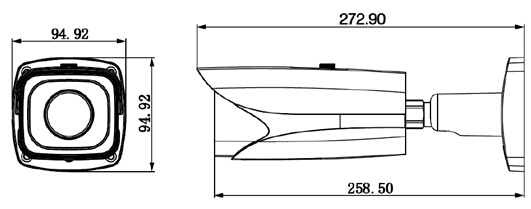

Dimensions	272.9mm×94.3mm×94.3mm
Weight	0.8Kg
