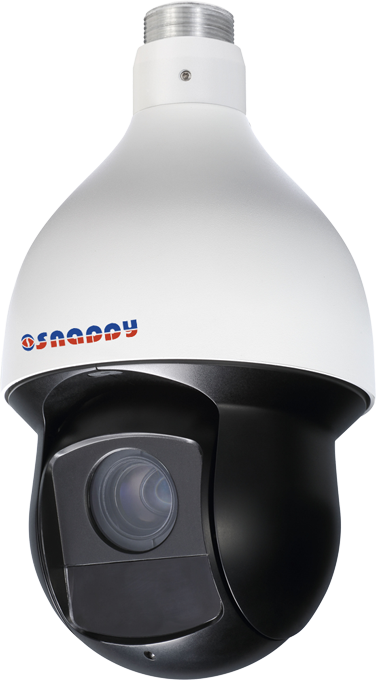

30x IR PTZ Camera
Model : PTZ-D630IRZC5

Features

  • 30x optical zoom
  • H.265&H.264 Encoding, Ultra-low bit rate transmission
  • Max. 25/30fps@4M(2592×1520) & 50/60fps@1080P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 400°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66, POE+
  • IR Distance up to 100m(AC24V)/ 80m(PoE+)

Accessories

Technical Specifications

Camera
Image Sensor 1/3”Color CMOS
Effective Pixels 2688(H) x 1520(V) 4Mp
Scanning System Progressive
Electronic Shutter Speed 1/3 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 55dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
WDR Dual Shutter 120dB
Backlight Compensation BLC / HLC / WDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.5mm ~ 135.0mm(30x Optical zoom)
Max Aperture F1.6~F4.4
Focus Control Auto / Manual
Angle of View H: 60° ~ 2.40°
Close Focus Distance 100mm~ 1500mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
IR Distance 80m (PoE+) 100m (AC24V)
Video
Compression H.265 /H.264 / MJPEG
Resolution 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720) / D1(704×576/ 704×480) /CIF
Frame Rate
Main Stream 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 1080P /960P/720P(1 ~ 25/30fps)
Bit Rate H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps
Audio
Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 2/1 channel In/Out
General
Power Supply AC24V, POE plus(802.3at)
Power Consumption PoE: 13W, 20W (IR on) AC24V: 13W, 23W (IR on)
Working Environment PoE: -30ºC ~ 60ºC / Less than 90% RH, AC24V: -40ºC ~ 70ºC / Less than 90% RH
Ingress Protection IP66

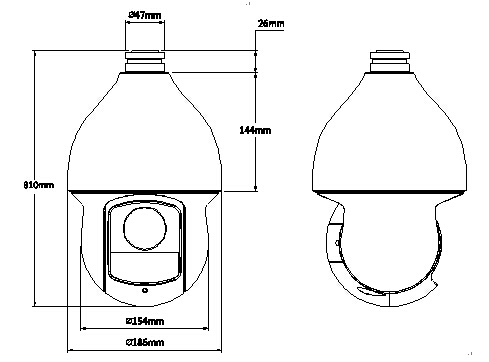

Dimensions Φ186.0(mm) x 309(mm)
Weight 3.5kg
Approvals FCC Part 15 subpart B, CE EN55022 Class A, EN55024, UL, ROHS, LVD

Application

1

Application

30x IR PTZ Camera
