| Video |
|
Compression
|
H.265 /H.264 / MJPEG |
|
Resolution
|
4M(2592×1520)/3M(2304×1296)/1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240) |
|
Frame Rate
|
|
Main Stream
|
4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps)
|
|
Sub Stream 1
|
D1/CIF(1 ~ 25/30fps)
|
|
Sub Stream 2
|
1080P /960P/720P(1 ~ 25/30fps)
|
|
Bit Rate
|
H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps |
| Audio |
|
Compression
|
G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
|
Interface
|
1/1 channel In/Out |
| Intelligent Function |
|
IVS (optional)
|
Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
|
|
Face Detection
|
Support
|
| Network |
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, |
|
Compatibility
|
ONVIF PSIA CGI
|
|
Max. User Access
|
20 users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
|
Memory Slot
|
Micro SD, Max 64GB |
|
Alarm
|
2/1 channel In/Out |
| General |
|
Power Supply
|
AC24V/1.5A (±10%), POE plus (802.3at) |
|
Power Consumption
|
Outdoor: 13W, 23W (Heater on)
|
|
Working Environment
|
Outdoor: -40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection
|
IP67, IK10 |
|

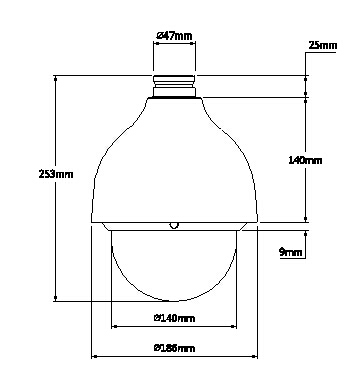

Dimensions
|
Φ186.0(mm) x 253(mm) |
|
Weight
|
2.5kg |
|
Approvals
|
FCC Part 15 subpart B, CE EN55022 Class A, EN55024, UL, ROHS, LVD |
