| Audio |
|
Compression
|
N/A |
| Network |
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wi-Fi
|
Wi-Fi(IEEE802.11b/g/n), 50m(open field) |
|
Protocol
|
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP; |
|
Interoperability
|
ONVIF, PSIA, CGI |
|
Streaming Method
|
Unicast / Multicast |
|
Max. User Access
|
10 Users/20 Users
|
|
Edge Storage
|
NAS(Network Attached Storage)
Local PC for instant recording, 128GB
Local PC for instant recording, 128GB
|
|
Web Viewer
|
IE, Chrome, Firefox, Safari
|
|
Management Software
|
Smart PSS, DSS,Easy4ip
|
|
Smart Phone
|
iPhone, iPad, Android Phone
|
| Certifications |
|
Certifications
|
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|
| Interface |
|
Video Interface
|
N/A |
|
Audio Interface
|
N/A |
|
RS485
|
N/A |
|
Alarm
|
N/A |
| Electrical |
|
Power Supply
|
DC12V |
|
Power Consumption
|
<3.9W
|
| Environmental |
|
Operating Conditions
|
-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH |
|
Strorage Conditions
|
-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH |
|
Ingress Protection
|
IP67 |
|
Vandal Resistance
|
N/A |
| Construction |
|
Casing
|
Metal+Plastic |
|

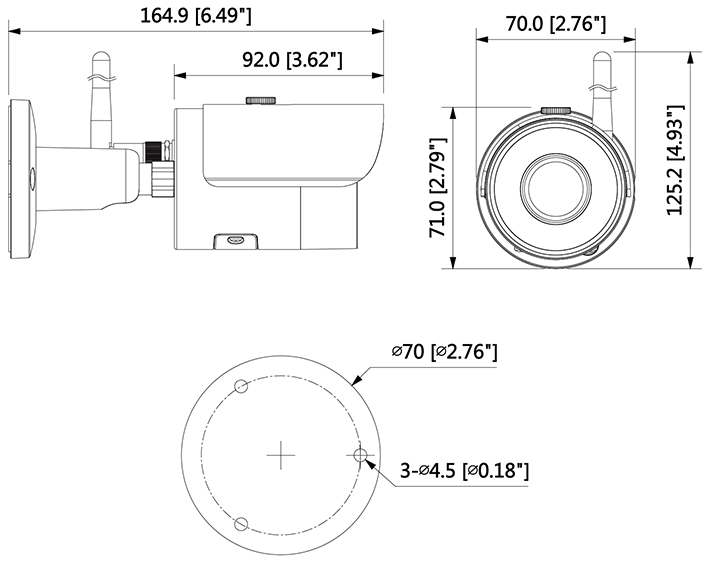

Dimensions
|
Φ70mm×164.7mm(2.76x6.49) |
|
Net Weight
|
0.31Kg (0.68lb) |
|
0.43Kg (0.95lb)
|
0.52Kg (1.158lb) |
