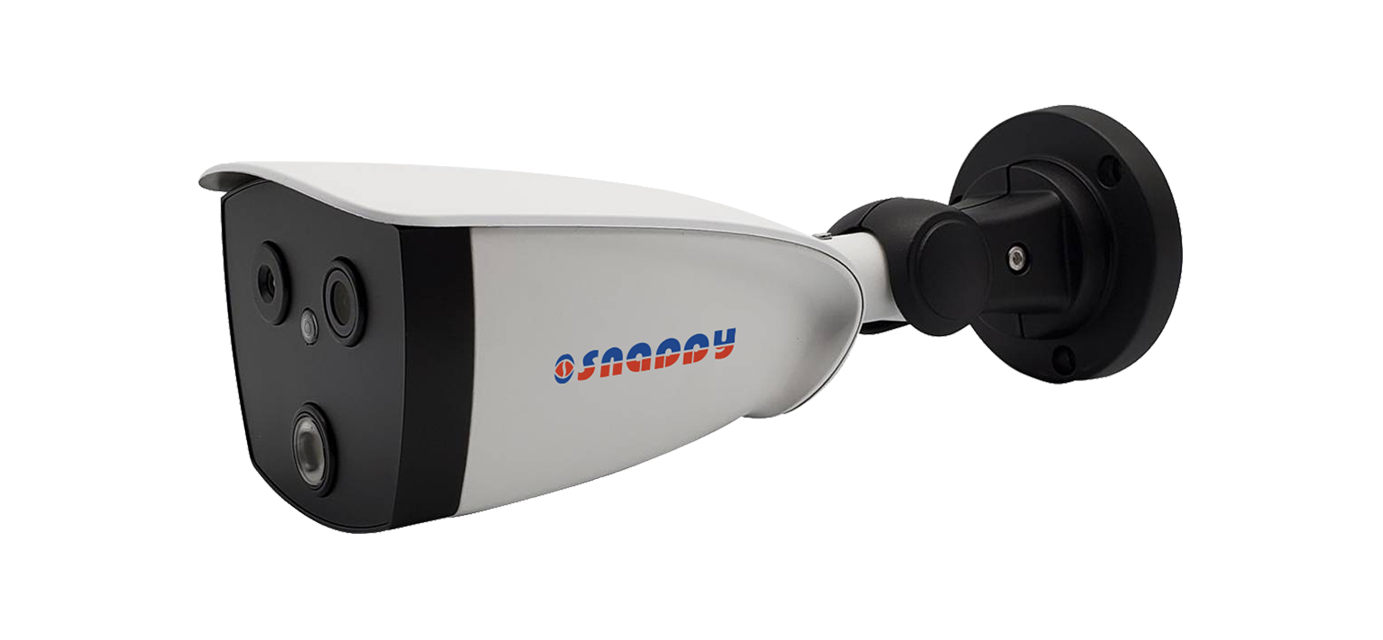

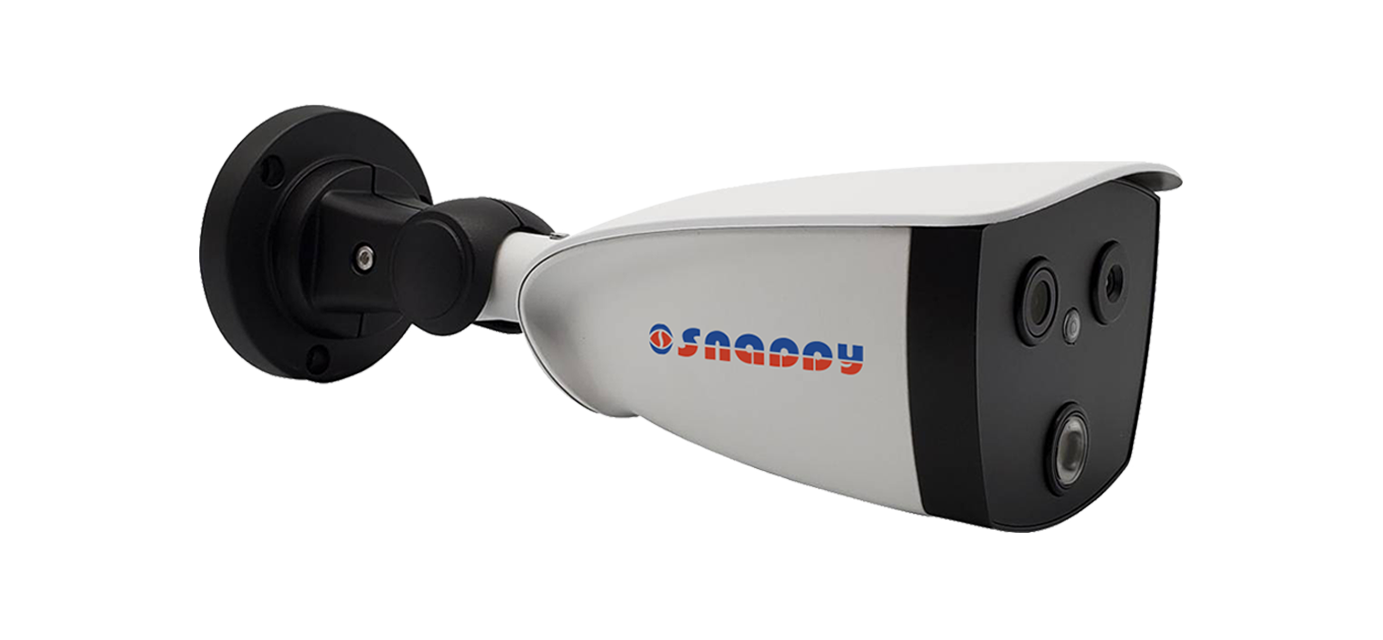

Thermal Camera
Model : IPC-DIA2000-FDT1

Features

  • High sensitivity thermal module with 256 x 192 resolution.
  • NETD is less than 60 mk (@25° C, F#=1.0).
  • Leading thermal image processing technology,Adaptive AGC, DDE, 3D DNR.
  • Up to 15 palettes of adjustable color.
  • Reliable temperature-anomaly alarm.
  • Temperature Range From -15°C to +150°C.
  • High quality optical module with 2 MP resolution, Bi-spectrum image fusion, picture-in-picture preview, Support for capture and save in PC of personnel in and out.

Technical Specifications

THERMAL :
Image Sensor Vox Uncooled Focal Plane Arrays
Resolution 256x192
NETD RK3066 Less than 60 mK (@25°C.F#=1.1)
Aperture F1.0
Field of View 35° x 27° (H x V)
OPTICAL :
Image Sensor Vox Uncooled Focal Plane Arrays
Resolution 256x192
Min. Illumination 12pm
Field of View Vox Uncooled Focal Plane Arrays
Focal Length 256x192
Shutter Speed 1sto 1/100,000
White Balance Auto/Manual/ATW (Autotracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
Day& Night Mode iR cut filter with auto switch
WDR 80 dB
FEATURE :
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture optical imageCombines details of thermal and optical image PIP, overlay thermal image on optical image
SMART FUNCTION :
Face snapping Built-in deep learning Al algorithm, Supports simultaneous detection of 20-30 faces
Temperature Measurement Support global and local temperature
Temperature Range From-15°C to +150°C
Temperature Accuracy Target temperature 35°C 38°C ±0.3 °C Target temperature 20°C 33°C ±0.6 °C Target temperature 38°C 50°C ±0.6 °C
NETWORK :
Main Stream Thermal: 25fps(1920 x 1080, 1280 x 720)
Sub Stream Thermal: 25fps(704 x 576, 352 x 288)
Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio Compression G 711u/G711a/G.7221/MP2L2/G.726/PCM
Protocols TCP/IP, ONVIF, GB/T 28181, DHCP. RTP, RTSP,PPPoEUPnP, UDP
API ONVIF (Profile S, Profile G, Profile T), SDK
GENERAL :
Web Client Language languages English, Chinese
Power DC 12V, 0.65A
Work Temperature/Humidity From -20°C to 55°C; Humidity: or Less95%
Protection Level IP66
Dimension 246 mm x 101 mm x 81 mm (with bracket)
Weight mm x 81 mm (with bracket)

Downloads

1

Catalog : IPC-DIA2000-FDT1

Click below link to download the catalog for the Thermal Camera - Model : IPC-DIA2000-FDT1

Download Catalog
