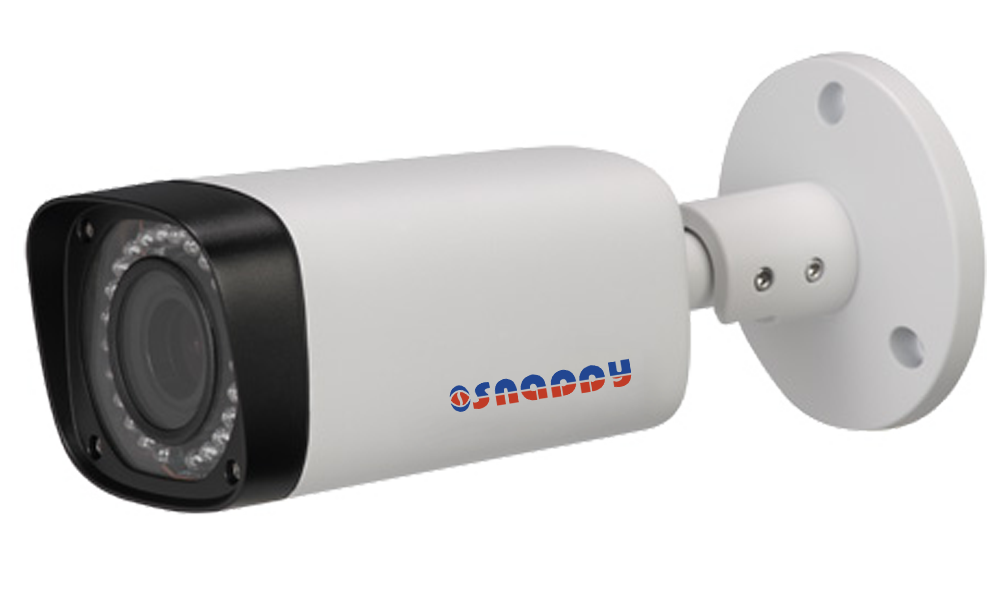

Bullet 1.3MP Water-Proof Camera
Model : IP-B2103VFC,
Model : IP-B2103AVFC (With Auto Focus)

Features

  • 1/3” 1.3Megapixel progressive scan CMOS
  • H.264&MJPEG dual-stream encoding
  • 25/30fps@1.3M(1280×960)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7~12mm varifocal lens
  • Max IR LEDs Length 30m
  • IP66, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control IP-B2103VFC : Manual,
IP-B2103AVFC : Auto
Angle of View H: 92°~ 28°
Lens Type IP-B2103VFC : Manual/Fixed lens,
IP-B2103AVFC : Motorized/ Fixed Iris
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ H.264B/ MJPEG
Resolution 1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1(1 ~ 25/30fps)
Bit Rate H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI, PSIA
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <4.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions 72mm×80mm×212.8mm
Weight 0.65kg
