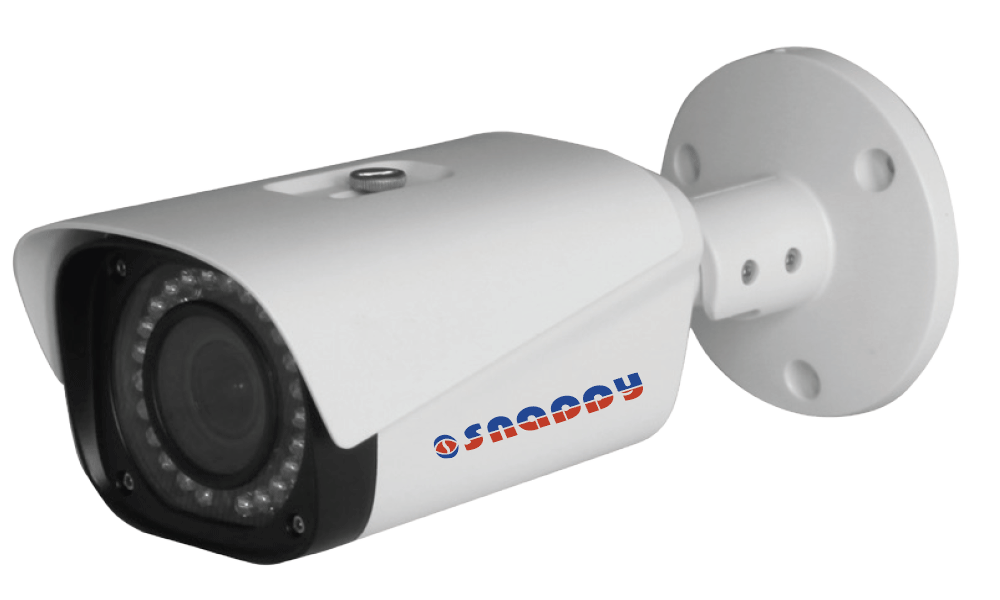

Bullet 2MP Water-Proof Camera - IP-B2VFC

Model : IP-B2VFC

Camera
Image Sensor	1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/ 3(4)~1/10000s
Min. Illumination	0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. IR LEDs Length	30m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	2.7mm~12mm
Max Aperture	F1.4
Focus Control	Manual
Angle of View	H: 98°~ 30°
Lens Type	Manual/ Fixed Iris
Mount Type	Board-in Type
Video
Compression	H.264/ H.264H/ MJPEG
Resolution	1080P(1920x1080)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream	1080P/960P/720P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps

Audio
Compression	N/A
Interface	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP , HTTPS, SSL, TCP/IP , UDP , UPnP , ICMP , IGMP , SNMP , RTSP , RTP, SMTP, NTP , DHCP , DNS, PPPOE, DDNS, FTP , IP Filter, QoS, Bonjour
Compatibility	ONVIF, CGI, PSIA
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V/PoE (802.3af)
Power Consumption	< 4.5W,< 8.5W
Working Environment	-30°C~+60°C, Less than 95% RH
Ingress Protection	IP66
Vandal Resistance	N/A
Dimensions	72mm×80mm×212.8mm
Weight	0.65kg
