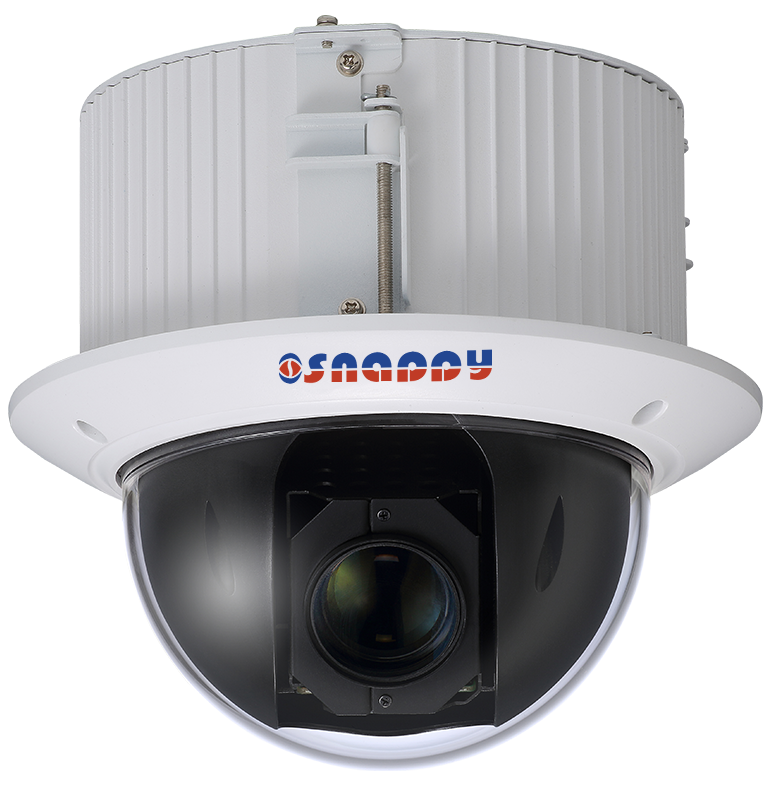

30x WDR Ultra-high Speed PTZ Camera - PTZ-D530ZC5
30x WDR Ultra-high Speed PTZ Camera
Model : PTZ-D530ZC5

Features

  • 30x optical zoom
  • Support Triple-streams encoding
  • Max. 25/30fps@4M(2592×1520),50/60fps@3M/1080P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 500°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IK10

Technical Specifications

Camera
Image Sensor 1/3”Color CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.5mm ~ 135.0mm (30x Optical zoom)
Max Aperture F1.6 ~ F4.4
Focus Control Auto / Manual
Angle of View H: 60° ~ 2.40°
Close Focus Distance 10mm~ 1500mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s
Preset Speed Pan: 500° /s; Tilt: 500° /s
Preset 300(DH-SD)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD(Auto recognition)
Video
Compression H.265 /H.264 / MJPEG
Resolution 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 1080P /960P/720P(1 ~ 25/30fps)
Bit Rate H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps
Audio
Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 2/1 channel In/Out
General
Power Supply AC24V/1.5A (±10%), POE plus (802.3at)
Power Consumption 13W
Working Environment -20ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP67(Outdoor), IK10

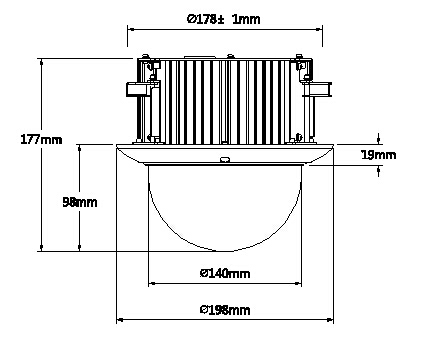

Dimensions Φ198(mm) x 177(mm)
Weight 2.2Kg

Application

1

Application

30x WDR Ultra-high Speed PTZ Camera
