8 Channel 1.5U 8PoE NVR
Model : NVR-48R-8P

Features

  • Up to 8 channel IP camera input
  • H.264/MJPEG dual codec decoding
  • Max 256Mbps incoming bandwidth
  • HDMI/VGA/TV simultaneous video output
  • All channel synchronous 1080p realtime preview, GRID interface
  • Support Multi-brand network cameras: Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Snappy PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA port, 3 USB2.0
  • Support IPC UPnP, 8 PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Accessories

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 8 channel
Two-way Talk 1 channel Input, 1 channel Output, BNC
Display
Interface 1 HDMI, 1 VGA, 1TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp(2560× 1920)/3Mp(2048× 1536)/1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480) & etc.
Record Rate 192Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4/8
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/eSATA Device/Internal SATA burner/Network
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Snappy IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 4 SATA ports (4HDDs or 3HDDs+1CD/DVD-RW), up to 16TB
External HDD 1 eSATA port
Auxiliary Interface
USB 3 ports (2 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply AC 100V~240V, 50/60 Hz
Power Consumption NVR: 40W (without HDD)
PoE: Max 15W (each)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H) 1.5U, 440mm×413mm×75mm
Weight 5kg (without HDD)

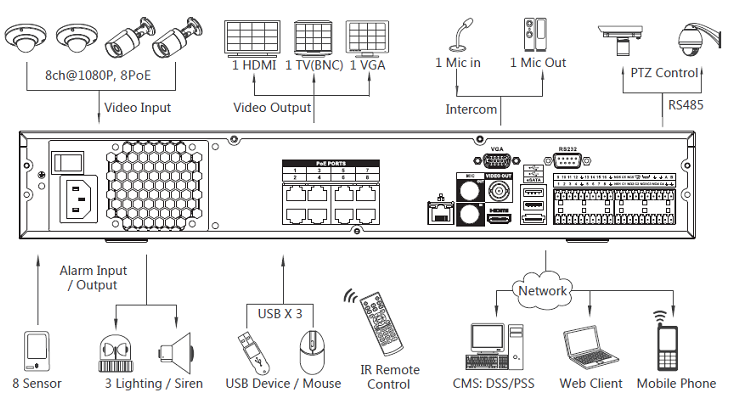

Application

1

Application

8 Channel 1.5U 8PoE NVR
