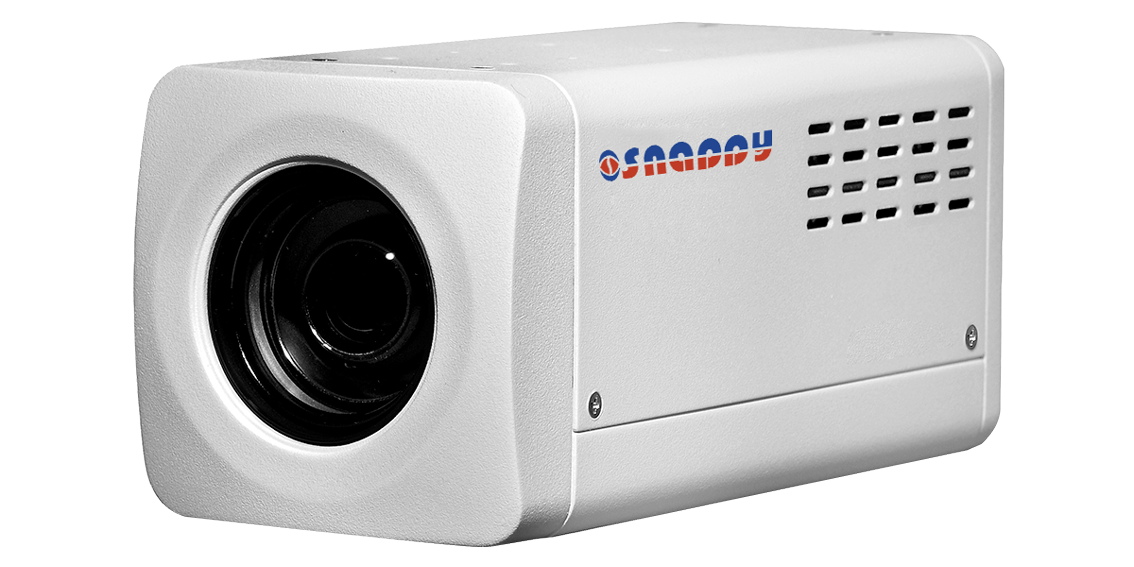

1.3MP HD Zoom Camera
Model : PTZ-B103ZLC

Features

  • 1.3Megapixel CMOS brings excellent image quality and high sensitivity
  • 20x optical zoom lens realizes instant AF & quick zoom
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1.3M resolution
  • DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Built-in 2/1 alarm in/out
  • Micro SD memory
  • Wide-range temperature application: -40°C ~ +70°C

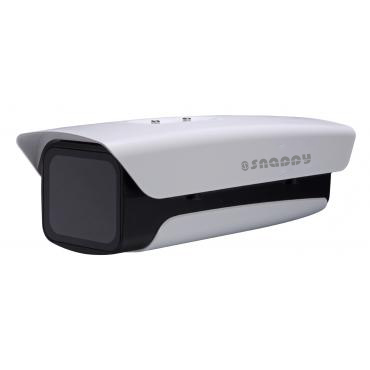

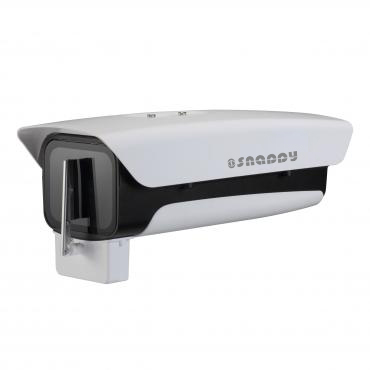

Accessories

Technical Specifications

Camera
Image Sensor 1/3” 1.3Mp Exmor CMOS
Effective Pixels 1280(H) x 960(V), 1.3 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 - 1/30,000s
Min. Illumination Color: 0.05 lux@F1.4, B/W: 0.005 lux@F1.4
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.7mm ~ 94.0mm (20x Optical zoom)
Max Aperture F1.4 ~ F2.6
Focus Control Auto / Manual
Angle of View H: 54.1°~ 3.2°
Close Focus Distance 100mm~ 1000mm
Video
Compression H.264 / MJPEG
Resolution 1.3M(1280´960)/720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Audio
Compression G.711a / G.711u (32kbps) / PCM (128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
RS232 1 port
RS485 1 port
Memory Slot Micro SD, Max 64GB
Alarm 2/1 channel In/Out
General
Power Supply AC 24V/DC 12V Optional , PoE
Power Consumption <10W
Working Environment -40°C ~ +70°C / < 90%RH

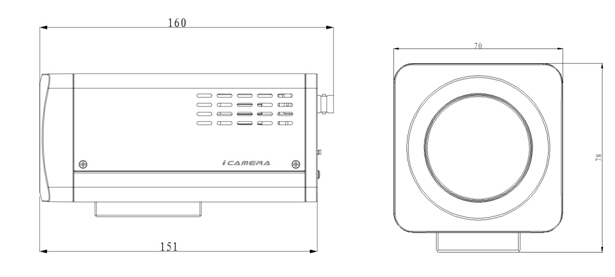

Dimensions(W×D×H) 160mm × 70mm × 70mm
Weight 1kg
