16/32 Channel 2U 16PoE NVR
Model : NVR-88SR (8 channel IP camera input)
Model : NVR-816R-16P (16 channel IP camera input) , Model : NVR-832R-16P (32 channel IP camera input)

Features

  • Up to 16/32 channel IP camera input
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA/TV simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Snappy PTZ camera
  • Support 8 SATA HDDs up to 48TB, 1 eSATA port,3 USB(1 USB3.0)
  • Support IPC UPnP, 16PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Accessories

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 32 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI,1 VGA,1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate 200Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 4 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Snappy IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 8 SATA III ports, up to 48TB
External HDD 1 eSATA port
Auxiliary Interface
USB 3 ports (1 Rear USB3.0,2 Front USB2.0)
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply AC 100V~240V,50/60HZ
Power Consumption 40W(without HDD)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H) 2U, 440mm×454mm×95mm
Weight 6.5KG(without HDD)

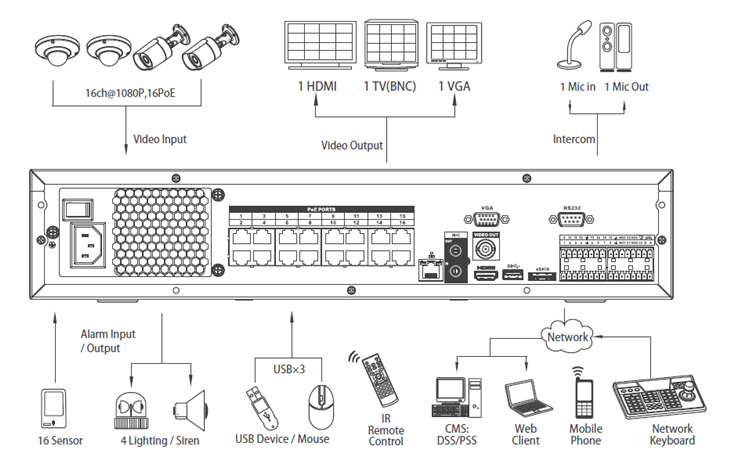

Application

1

Catalog : 16/32 Channel 2U 16PoE NVR

Click below link to download the catalog for the 16/32 Channel 2U 16PoE NVR - Model : NVR-832R-16P

Download Catalog
