8 Channel Smart 1U 8PoE Lite NVR
Model : NVR1088P-SS

Features

  • H.264/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 6MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • 3D intelligent positioning with Snappy PTZ camera

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 8CH: 1/4/8/9
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.264/H.264
Resolution 6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1 & etc.
Record Rate 80Mbps
Bit Rate 16kbps ~ 20Mbps for per channel
Record Mode Manual, Schedule (Regular, Continuous), MD, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Sync Playback 4CH: 1/4/8
Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface 1 RJ-45 Port (10/100Mbps)
Ethernet Port 1 Independent 100Mbps Ethernet Port
PoE 8 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Snappy IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 ports (2 Rear USB2.0)
RS232 N/A
RS485 N/A
Electrical
Power Supply Single, DC48V/2A
Power Consumption <4.5W (without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

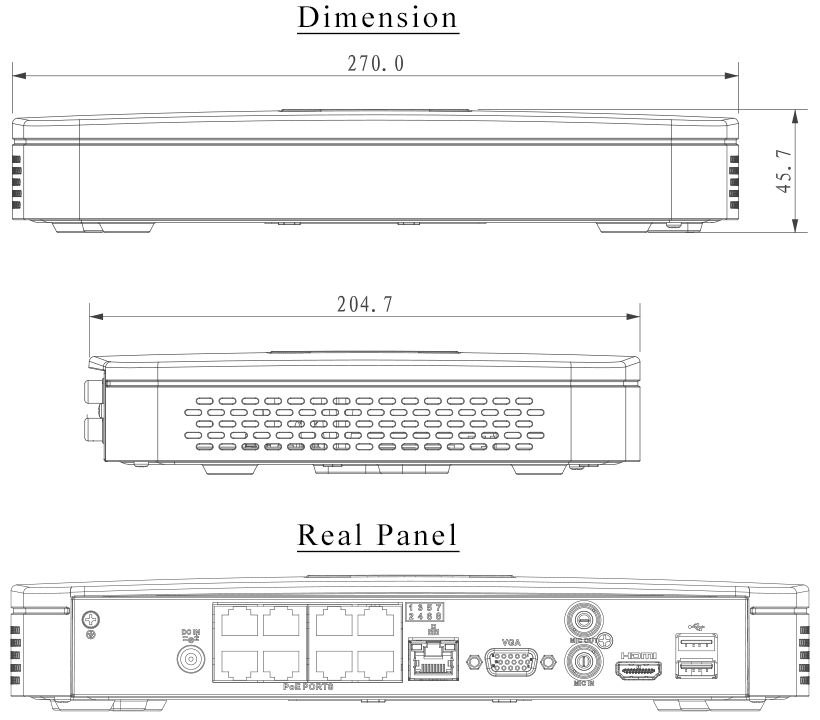

Dimensions(W×D×H) Smart 1U, 270mm×204.7mm×45.7mm(10.6" x 8.1" x 1.8")
Net Weight 0.65kg (1.43 lb) (without HDD)
Gross Weight 1.8kg(3.97 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014

Application

1

Application
