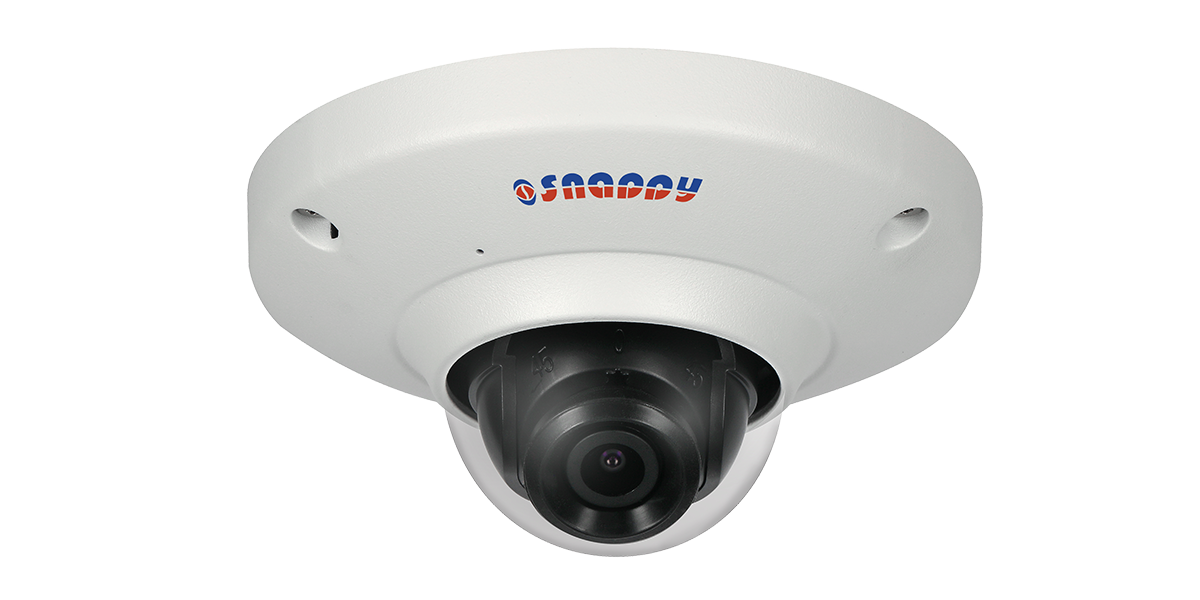

Mini Dome 4MP Camera
Model : IP-MD14FC-US3

Features

  • 1/3" 4Megapixel progressive scan CMOS
  • Support H.265&H.264 triple-stream encoding
  • 25/30fps@4MP(2688×1520)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm optional)
  • Built-in Mic
  • Micro SD memory, IP66, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive scan Exmor CMOS
Effective Pixels 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Min. Illumination 0.08Lux/F2.0 (Color), 0.001Lux/F2.0 (B/W)
S/N Ratio More than 50dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm (2.8mm optional)
Max. Aperture F2.0 (F2.0)
Angle of View H: 87° (104°) , V: 48° (57°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚
Intelligence
IVS (optional) Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4M(2688x1520)/3M(2304x1296)/1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 4M(1~25/30fps)
Sub Stream D1(1~25/30fps)
Third Stream 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps , H.265: 14~9984Kbps
Day/Night Electronic
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR N/A
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS, Local PC for instant recording, Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <3W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Construction
Casing Metal

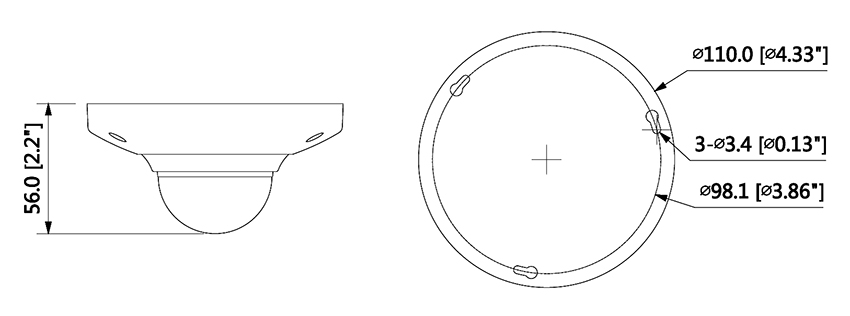

Dimensions Φ110mm×56mm (4.33”×2.2”)
Net Weight 0.38Kg (0.84lb)
Gross Weight 0.44Kg (0.97lb)

Application
