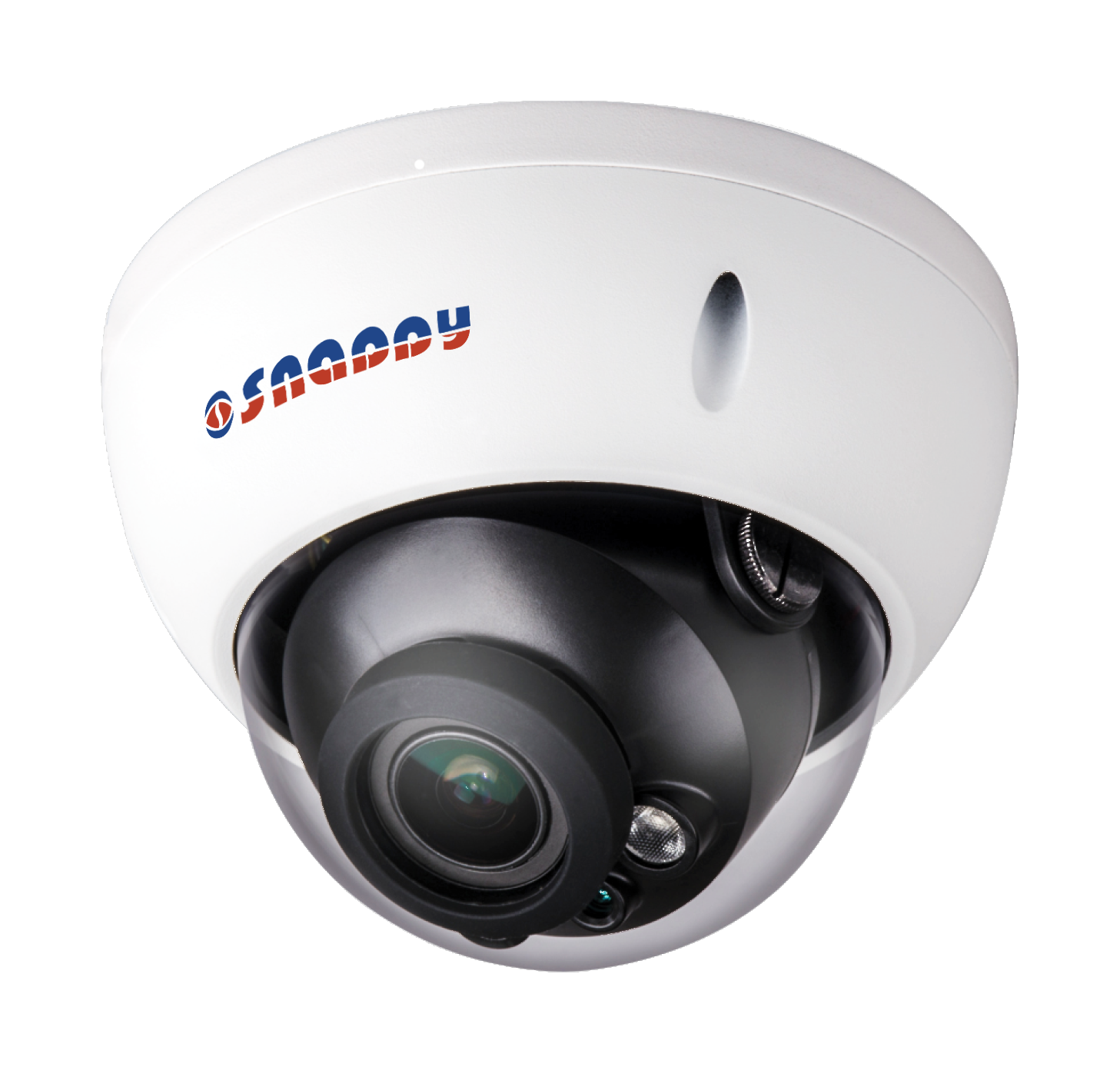

Standard Dome 5MP WDR IR Network Camera - IP-D5MVFC-SS
Dome 5MP WDR IR Camera
Model : IP - D5MVFC - SS

Features

  • 1/2.7” 5Megapixel progressive CMOS
  • H.265 & H.264 dual-stream encoding
  • 15fps@5M(2592×1944)&25/30fps@3M(2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB,AGC,BLC
  • Multiple network monitoring: Web viewer,Snappy Universal CMS
  • Micro SD card slot, up to 128GB
  • 2.7~13.5mm varifocal lens
  • Max IR LEDs Length 30m
  • IP67, IK10, PoE

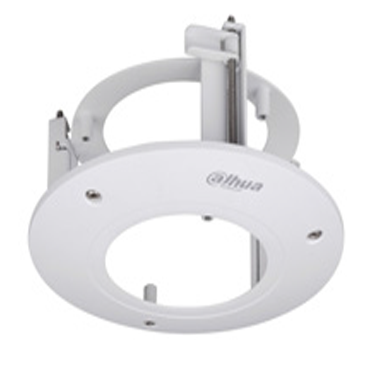

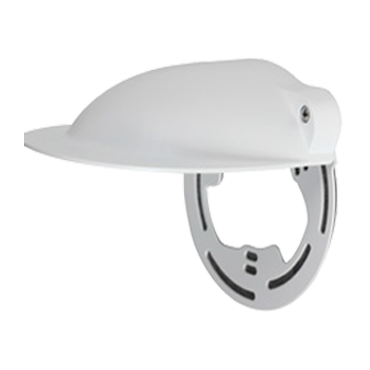

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.7” 5Megapixel progressive CMOS
Effective Pixels 2592(H) x1944(V)
RAM/ROM 512MB / 32MB
Scanning System Progressive
Electronic Shutter Speed Auto / Manual, 1 / 3~1 / 100000s
Minimum Illumination
0.02Lux/F1.6( Color,1/3s,30IRE)
0.2Lux/F1.6( Color,1/30s,30IRE)
0Lux / F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 2.7mm~13.5mm
Max. Aperture F1.6
Angle of View H:95°~27°, V:70°~20°
Focus Control Motorized
Close Focus Distance 0.3m
DORI Distance Lens Detect Observe Recognize Identify
W 64m(210ft) 26m(85ft) 13m(43ft) 6m(20ft)
T 222m(728ft) 89m(292ft) 44m(144ft) 22m(72ft)
PTZ
Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 75°; Rotation: 0° ~ 355°
Intelligence
Event Trigger Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265+/H.265/H.264+/H.264
Smart Codec Support H.265+/h.265+
Streaming Capability 2 Streams
Resolution 5M(2592×1944)/4M(2688x1520)/(2560×1440)/(2304x1296)/1080P(1920x1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate
5M (1 ~ 15fps)/3M(1 ~ 25/30fps)
D1/CIF(1 ~ 20/25fps)
Bit Rate Control CBR/VBR
Bit Rate
H.265:12K ~ 8448Kbps
H.264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS; RTCP
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <9.5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal

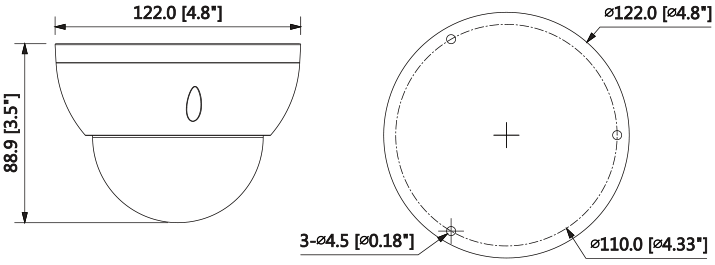

Dimensions φ122mm×88.9mm(4.80"x3.50")
Net Weight 0.4Kg (0.88lb)
Gross Weight 0.54Kg(1.19lb)

Application

1

Catalog : 5MP WDR IR Dome Network Camera

Click below link to download the catalog for the 5MP WDR IR Dome Network Camera - Model : IP - D5MVFC - SS

Download Catalog
