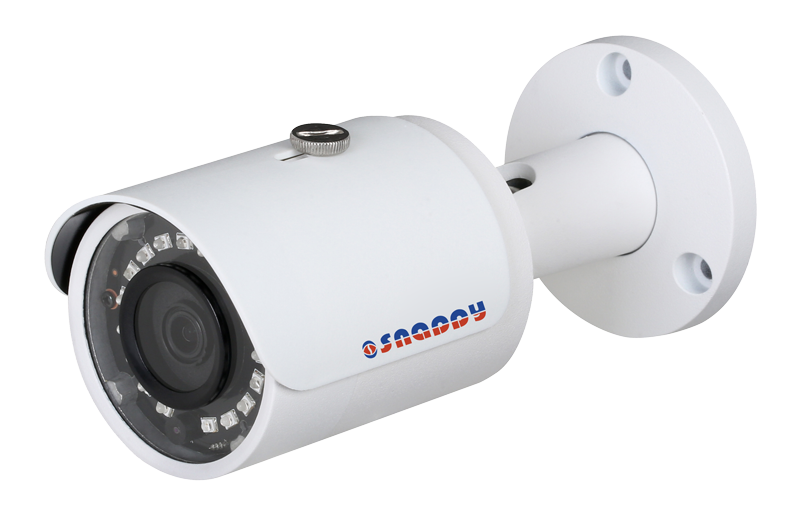

IR Mini Bullet WDR 4MP Camera - IP-MB4FWC-PS
IR Mini Bullet WDR 4MP Camera - IP-MB4FWC-PS
Model : IP-MB4FWC-PS

Features

  • 1/3" 4Megapixel progressive scan CMOS
  • H.265&H.264 triple-stream encoding
  • 25/30fps@4Mp(2688×1520)
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR LEDs Length 30m
  • IP67, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Minimum Illumination 0. 08Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
S/N Ratio More than 50dB
IR Distance Distance up tp 30m (98.4ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm optional)
Max. Aperture F2.0 (F2.0, F2.0)
Angle of View H: 87° (104°, 55°), V: 48° (57°, 31°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS (optional) Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 4M(1~25/30fps)
Sub Stream D1(1~25/30fps)
Third Stream 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps,H.265: 14 ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE(802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal

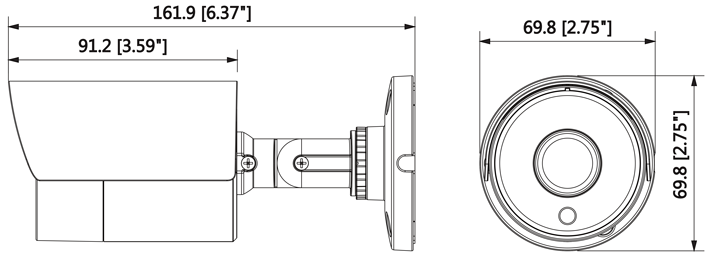

Dimensions 161.9mm×69.8mm×69.8mm (6.37”×2.75”×2.75”)
Net Weight 0.38Kg (0.84lb)
Gross Weight 0.44Kg (0.97lb)
