Small Bullet IR 2MP Camera
Model : IP-1C3FC-WS

Features

  • 1/3” 3Megapixel progressive CMOS
  • H.264 & MJPEG dual-stream encoding
  • 20fps@3M(2304x1296)&25/30fps@2M (1920×1080)
  • 120° horizontal view angle
  • IR Diatance 10m
  • Easy4ip cloud support
  • Wi-Fi Support/li>
  • Micro SD card slot, up to 128GB
  • DC5V1A

Technical Specifications

Camera
Image Sensor 1/3” 3Megapixel progressive CMOS
Effective Pixels 2304(H) x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Min. Illumination 0.9Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.3mm
Max. Aperture F2.2
Angle of View H:120°;V:69°
Focus Control Fixed
Close Focus Distance N/A
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°
Video
Compression H.264/H.264B/H.264H.MJPEG
Streaming Capability 2 Streams
Resolution 3M(2048×1536)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640 ×480)/QVGA(320×240)
Frame Rate 3MP(1~20fps)2M(1~25/30fps)
VGA/QVGA(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711A;G.711Mu;AAC
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording, 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic & Speaker
RS485 N/A
Alarm N/A
Electrical
Power Supply DC5V 1A
Power Consumption <4.7W
Environmental
Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Construction
Casing Plastic

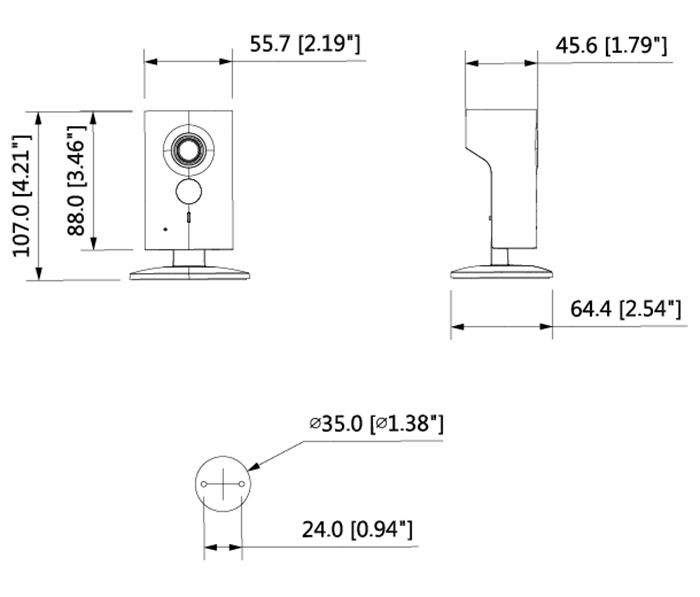

Dimensions 64.4mm*55.7mm*107mm(2.54’ x2.19’’x4.21’’)
Net Weight 0.135Kg(0.30lb)
Gross Weight 0.36Kg(0.79lb)
