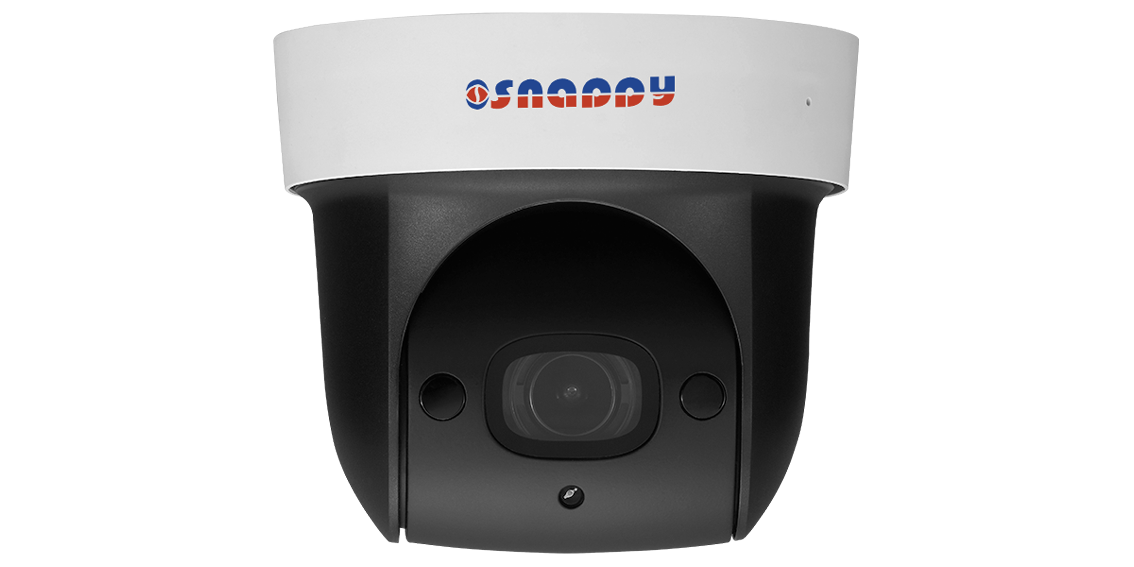

Dome 2MP Full HD Mini IR PTZ Camera
Model : PTZ-D4ZLC

Features

  • 4x optical zoom
  • H.264 & MJPEG dual-streams encoding
  • Max. 25/30fps@1080P(19201080) & 50/60fps@720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100°/s pan speed
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, Built-in Mic, POE/ Wifi optional
  • IR Distance up to 30m

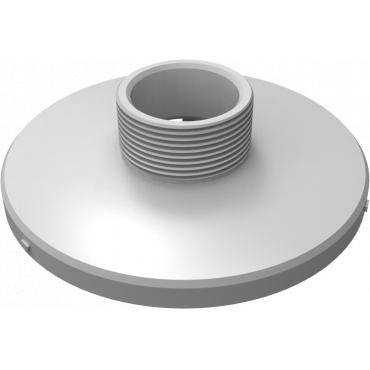

Accessories

Technical Specifications

Camera
Image Sensor 1/2.8” CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 50dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 2.7mm~11mm(4x Optical zoom)
Max Aperture F1.6~ F2.8
Focus Control Auto / Manual
Angle of View H: 112.5° ~ 39°
PTZ
Pan/Tilt Range Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
IR Distance 30m
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 1080P(1 ~ 25/30fps)/ 720P (1 ~ 50/60fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface Built-in Mic
Network
Ethernet RJ-45 (10/100Base-T)
WIFI Support
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
General
Power Supply DC12V
Power Consumption 10W, 13W (IR on)
Working Environment -30ºC ~ 60ºC / Less than 90% RH

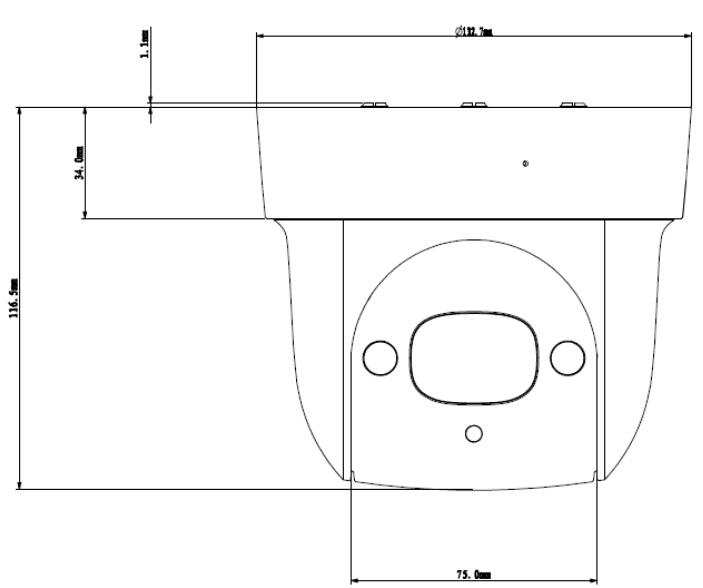

Dimensions Φ132.7 (mm) x 116.5 (mm)
Weight 0.95kg
