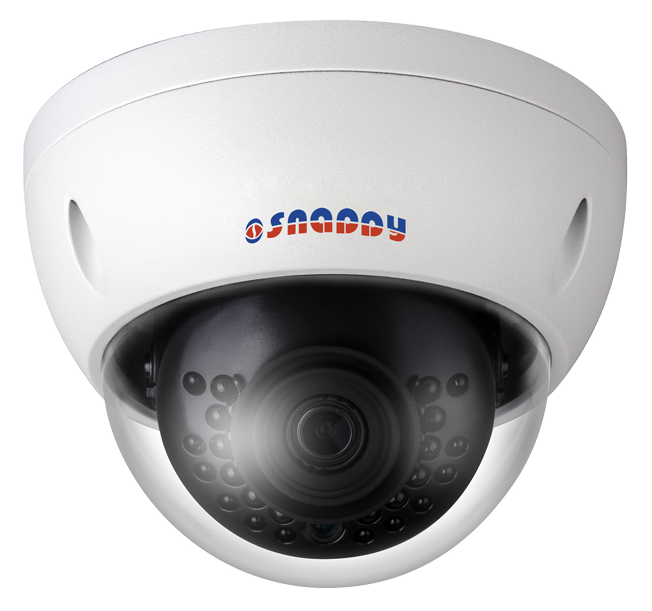

IR Mini Dome 2mp Camera - IP-MD2FWC-PS
Model : IP-MD2FWC-PS

Features

  • 1/2.8” 2Megapixel progressive scan Exmor CMOS
  • H.265&H.264 triple-stream encoding
  • 50/60fps@1080P(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 30m
  • Micro SD memory, IP67, IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan Exmor CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 256MB/32MB
Scanning System Progressive
Min. Illumination 0.009Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m (98.4ft)
IR On/Off Control Auto/ Manual
IR LEDs 24
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm optional
Max. Aperture F2.0 (F2.0, F2.0)
Angle of View H: 87° (110°, 51°) , V:48° (58°, 30°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~64˚; Rotation:0˚~355˚
Intelligence
IVS (optional) Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 1080P (1~50/60fps)
Sub Stream D1(1~50/60fps)
Third Stream 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~9472Kbps
H.265: 14~5632Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1/1 channel In/Out
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal

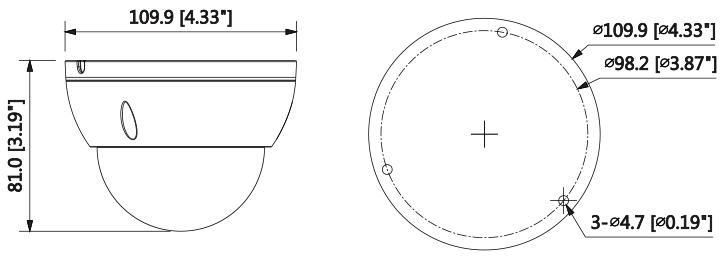

Dimensions Φ109.9mm×81mm (4.33”×3.19”)
Net Weight 0.41kg (0.91lb)
Gross Weight 0.53 kg (1.17lb)
