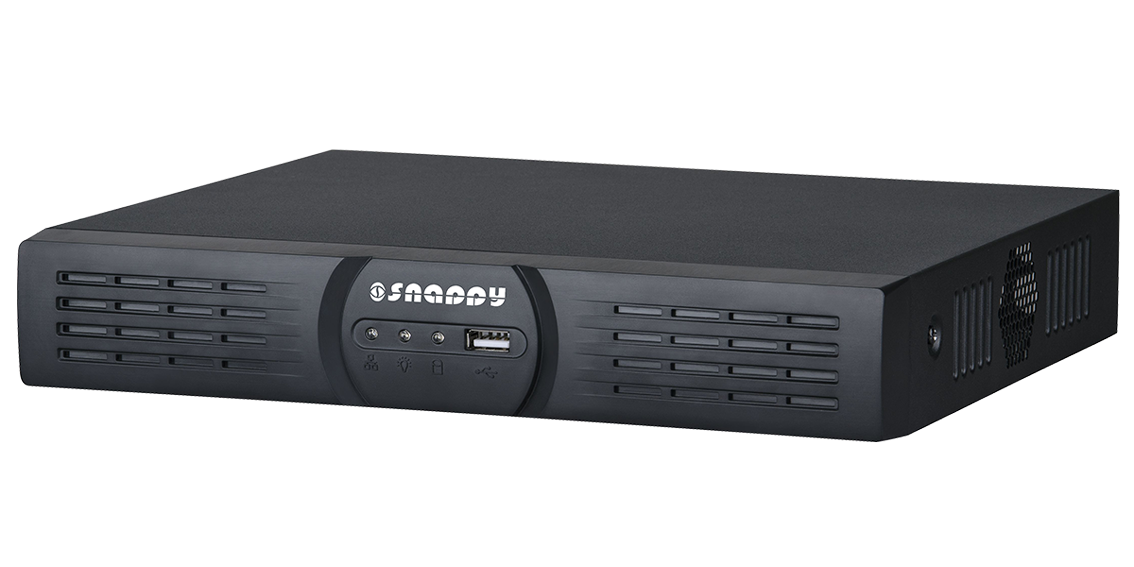

4/8 Channel Compact 1U NVR
Model : NVR-14R-C (4 channel IP camera input) , Model : NVR-18R-C (8 channel IP camera input)

Features

  • Up to 4/8 channel IP camera input
  • Max 24Mbps for NVR1104HS/56Mbps for NVR1108HS incoming bandwidth
  • HDMI/VGA simultaneous video output
  • All channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Snappy PTZ camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Support P2P, QR code scan & add
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel(NVR-14R-C), 8 channel(NVR-18R-C)
Two-way Talk N/A
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4(NVR-14R-C), 1/4/8/9(NVR-18R-C)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)& etc.
Record Rate Max 24Mbps(NVR-14R-C), Max 56Mbps(NVR-18R-C)
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4(NVR-14R-C), 1/4/8(NVR-18R-C)
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1RJ-45 port (10/100Mbps)
Network Function HTTP, TCP/IP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search(Support Snappy IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports (1 Rear), USB2.0
General
Power Supply DC12V/1.5A
Power Consumption <3W (without HDD)
Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) Compact 1U, 260mm×230mmx48mm
Weight 0.7~0.8kg(without HDD)

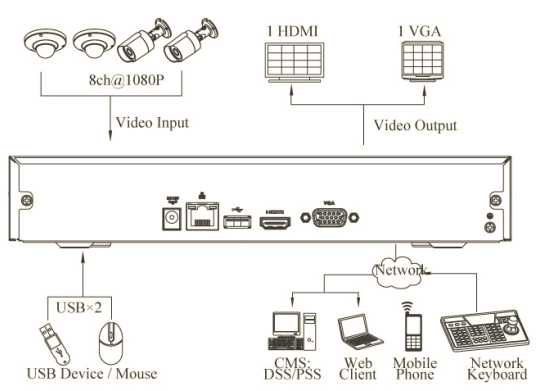

Application

1

Application
