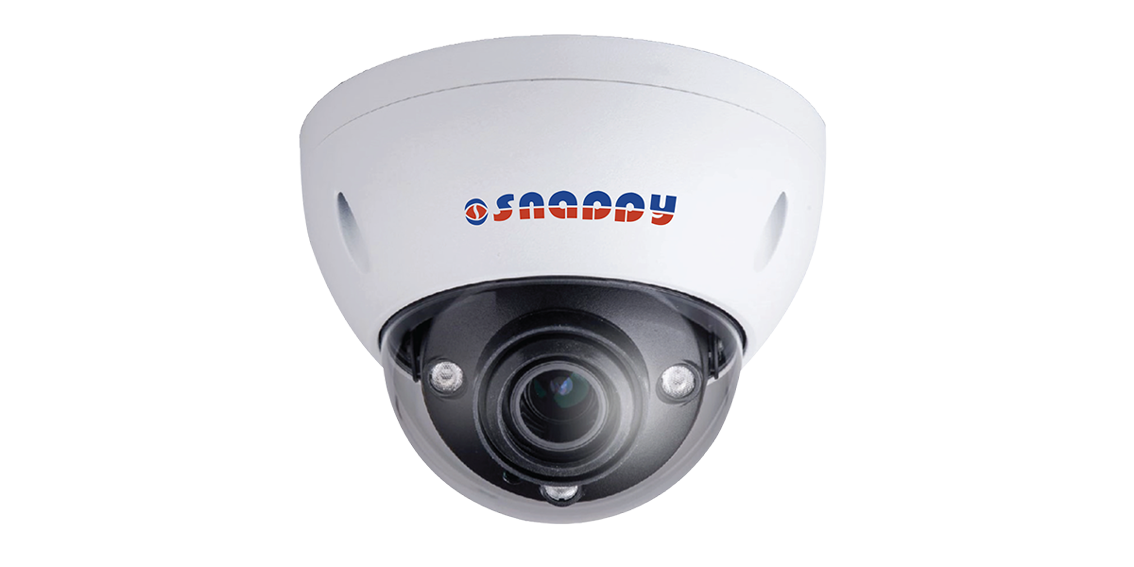

Vandal-proof Dome 4MP HD WDR IR Camera
Model : IP-D4MVFC

Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 20fps@4M(2688×1520) & 25/30fps@3M(2304×1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~12mm motorized lens
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 50m
  • Micro SD memory, IP67, IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Motorized
Angle of View H: 100°~33°
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 4M(2688x1520)/4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 4M(1~20fps)/3M(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 32K~10Mbps
Corridor mode Support
Audio
Compression G.711a / G.711u/ AAC
Interface 1/1 channel In/Out
Smart Function(optional)
Smart detection Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD card, Max 128GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE (802.3af)
Power Consumption Max 10W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

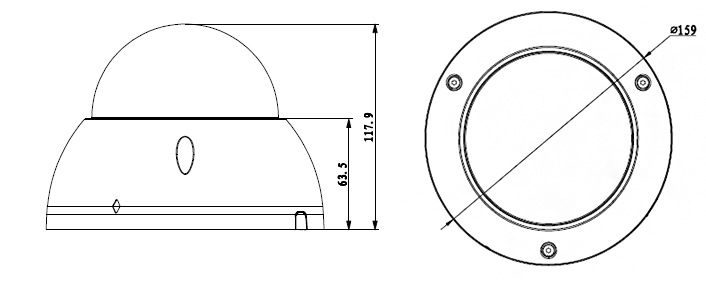

Dimensions Φ159mm×117.9mm
Weight 0.8kg

Application

1

Application

Vandal-proof Dome 4MP HD WDR IR Camera
