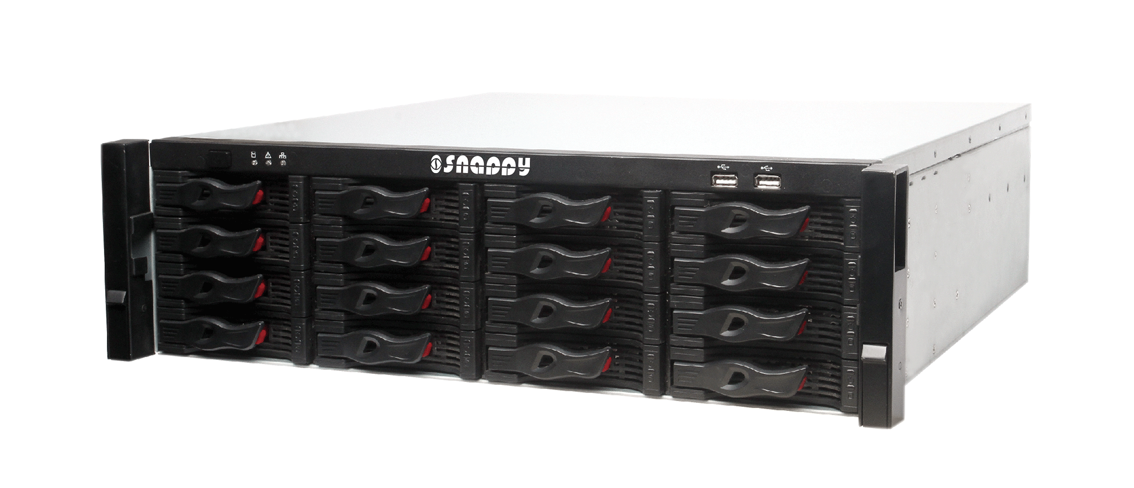

Ultra Video 64/128 Channel 4K Recorder
Model : NVR-1664RRP4K-ES ,NVR-16128RRP4K-ES

Features

  • Intel Processor
  • Max 64/128 IP Camera Inputs
  • Max 384Mbps Incoming Bandwidth
  • Up to 12MP Resolution for Preview and Playback
  • Supports RAID 0/1/5/6/10
  • iSCSI and Mini SAS for Expanded Storage Space
  • Smart Tracking and Intelligent Video
  • Redundant Power

Accessories

Technical Specifications

System
Main Processor Intel Quad-core Processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 64/128 Channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 2 HDMI (up to 3840 x 2160 , Different Source), 1 VGA 4 HDMI (Optional)
Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024,1280 × 720 , 1024 × 768
Display Split 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc
Record Rate 384Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP,Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss and Tampering
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.
Playback & Backup
Playback 128 Mbps in Raid 5 Mode 64 Mbps in single HDD Mode
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface 4 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Snappy IP camera, DVR, NVS etc.)
Optical Fiber Interface 2 Giga Optical Fiber Interface
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 16 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS 1 Mini SAS Port, for Storage Expansion
Auxiliary Interface
Front Cover Support Hot-swap
USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz, Redundant
Power Consumption <51W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimension(W×D×H) 3U, 485mm x 512.9mm x 133.2mm (19.1" x 20.2" x 5.2")
Net Weight 19.1kg (42.1 lb) (without HDD)
Gross Weight 28.5kg (62.8 lb)
Installation Rack-mounted
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014

Application

1

Application

Ultra Video 64/128 Channel 4K Recorder
