Dome 5MP 30x IR PTZ Camera
Model : PTZ-D130IRZC5

Features

  • Powerful 30x optical zoom
  • H.265 encoding, Ultra-low bit rate transmission
  • Max 30fps @5Mp and 60fps @1080P resolution
  • Defog, EIS, ROI, DWDR, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Micro SD memory, IP67,IK10
  • IR Distance up to 200m

Accessories

Technical Specifications

Camera
Image Sensor 1/1.9" Exmor CMOS
Effective Pixels 5 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30000s
Min. Illumination Color: 0.01Lux@F1.5; B/W: 0.001Lux@F1.5; 0Lux (IR on)
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation Support
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 4x
EIS Support
Defog Support
Lens
Focal Length 6mm ~ 180mm (30x Optical zoom)
Max Aperture F1.5 ~ F4.3
Focus Control Auto / Manual
Angle of View H: 61.2° ~ 2.32°
Close Focus Distance 100mm~ 1500mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Video
Compression H.265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG
Resolution 5Mp(2560*1920)/3Mp(2048*1536)/1080P(1920*1080)/1.3Mp(1280*960)/720P(1280*720)
Frame Rate
Main Stream 5Mp(1~25/30fps)/3Mp(1~25/30fps)/1080P(1~50/60fps)/1.3Mp(1~25/30fps)/720P(1~25/30fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 5Mp(1~20fps)/1080P(1~25/30fps)/1.3Mp(1~25/30fps)/720P(1~25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps
Audio
Compression G.711a/G.711Mu/AAC/G.722 / G.726
Interface 1/1 channel In/Out
Intelligent Function
IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
Alarm 7/2 channel In/Out
General
Power Supply AC24V/3A(±25%)
Power Consumption 24W, 38W (IR on)
Working Environment -40ºC ~ 70ºC / Less than 95% RH
Ingress Protection IP67,IK10

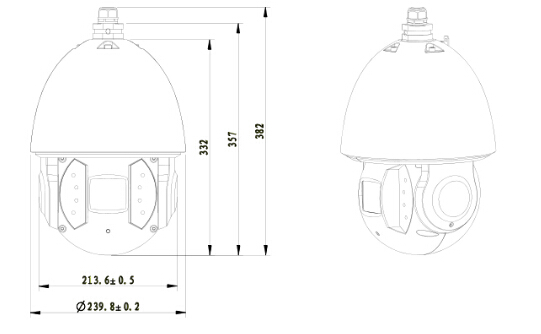

Dimensions Φ240mm×382mm
Weight 6.8kg
