Mini Dome 2MP Camera

Model : IP-MD2FC-W

Camera
Image Sensor	1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3(4)~1/100000
Min. Illumination	0.01Lux/F1.2(color)
S/N Ratio	More than 50db
Video Output	N/A
Camera Features
Max. IR LEDs Length	15m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	Off/BLC/HLC/DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Digital Zoom	3x
Lens
Focal Length	3.6mm
Max Aperture	F1.2
Focus Control	Manual
Angle of View	H:88°
Lens Type	Fixed lens
Mount Type	Board-in Type
PT
Pan/ Tilt Range	Pan: 0°~± 180°; Tilt: 0°~90°
Preset Speed	100°/s
Preset	25
Video
Compression	H.264/H.264H/MJPEG
Resolution	1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576/704× 480) / CIF(352× 288/352× 240)
Frame Rate
Main Stream	1080P/720P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a/G.711u/PCM
Interface	Bulit-in Mic
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n)

Audio
Compression	G.711a/ G.711u/ AAC
Interface	Built-in Mic
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n)50m(open field)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
ONVIF	ONVIF ,CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V
Power Consumption	<4W
Working Environment	-30°C~+50°C, Less than 95%RH
Ingress Protection	N/A
Vandal Resistance	N/A

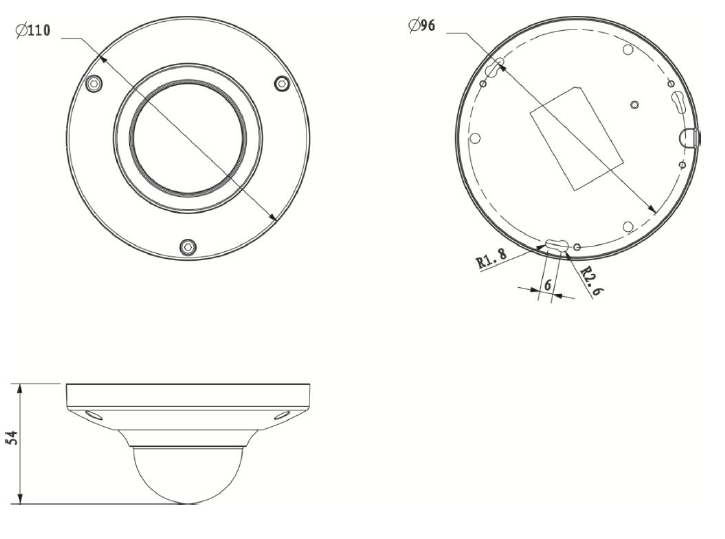

Dimensions	Φ110× 54mm
Weight	0.25kg
