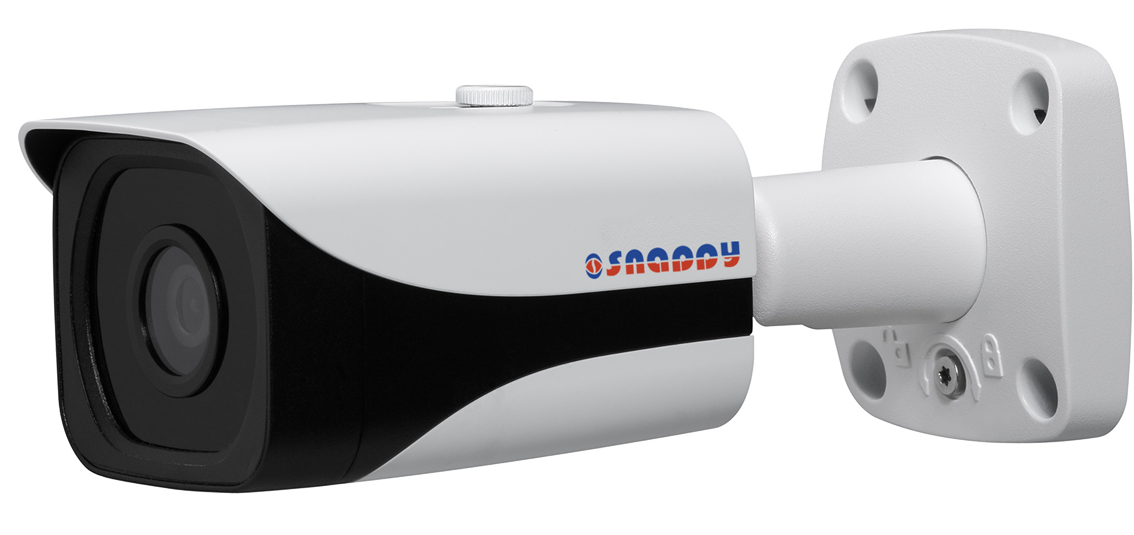

IR Small Bullet 2MP Full HD Camera - IP-MB2FC-US

Model : IP-MB2FC-US

Camera
Image Sensor	1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Min. Illumination	0. 01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max.IR LEDs Length	40m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (6mm optional)
Max Aperture	F2.2(F2.0)
Focus Control	Manual
Angle of View	H:84°(56°)
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264/H.264B/H.264H/ MJPEG
Resolution	1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream	1080P/720P(1~25/30fps)
Sub Stream	D1/CIF(1~25/30fps)
Third Stream	720P(1~13/4fps)
Bit Rate	H.264: 32Kbps~10Mbps
Corridor Mode	Support

Audio
Compression	N/A
Interface	N/A
Smart Function(Optional)
Smart detection	Tripwire, Intrusion, Scene change, Abandoned/Missing, Audio detect,Face detect
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE (802.3af)
Power Consumption	< 5W
Working Environment	-30°C~+60°C, Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Dimensions	70mm×70mm×180mm
Weight	0.4kg(0.528kg with packaging)
