Mini PT Dome 2MP IR Camera
Features Technical Specifications Downloads High Resolution Images

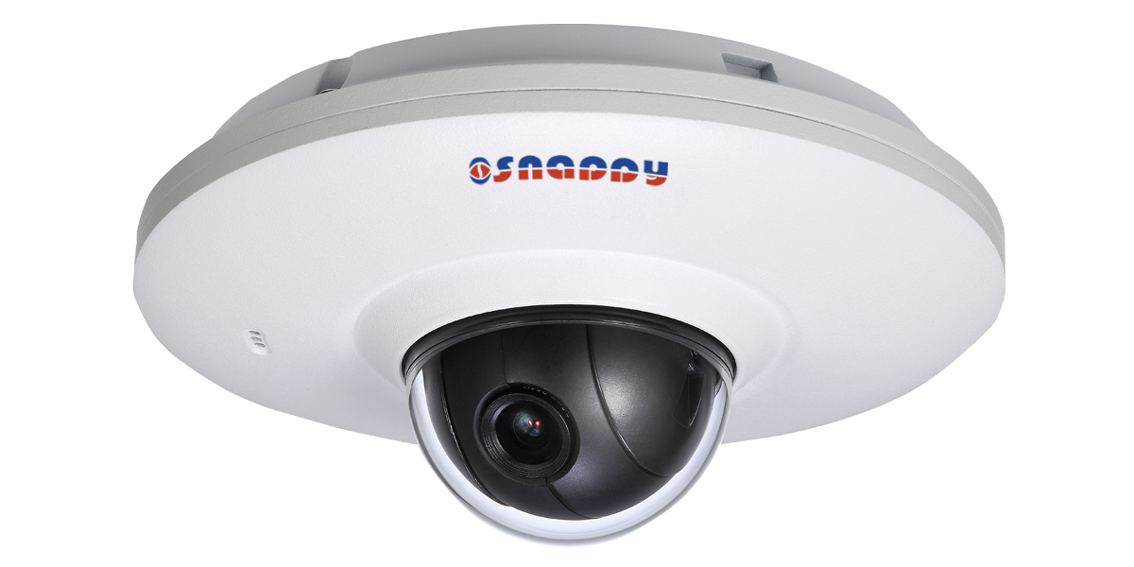

Mini PT Dome IR Camera
Model : IP-MD2FC

Features

  • 1/2.8” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080(1920×1080)
  • Day/Night(Electronic), 3DNR, AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100°/s preset speed, ±180° Pan range, 90°Tilt range
  • 3.6mm fixed lens
  • Micro SD memory, IP66, IK10

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01lux/F1.2(color)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(Electronic)/Color/B/W
Backlight Compensation Off/BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Digital Zoom 3x
Lens
Focal Length 3.6mm
Max Aperture F1.2
Focus Control Manual
Angle of View H:88°
Lens Type Fixed lens
Mount Type Board-in Type
PT
Pan/ Tilt Range Pan: 0°~±180°; Tilt: 0°~90°
Preset Speed 100°/s
Preset 25
Video
Compression H.264/ MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a/ G.711u/ AAC
Interface Bulit-in Mic
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD card, Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 3W
Working Environment -20°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance IK10

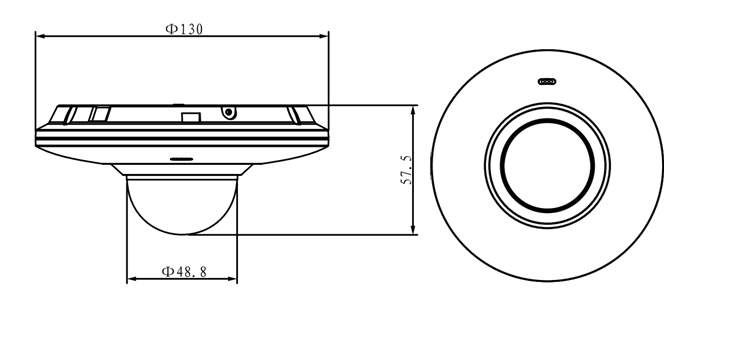

Dimensions Φ130mm×57.5mm
Weight 0.25kg

Downloads

1

Catalog : Mini PT Dome 2MP IR Camera

Click below link to download the catalog for the Mini PT Dome 2MP IR Camera - Model : IP-MD2FC

Download Catalog
