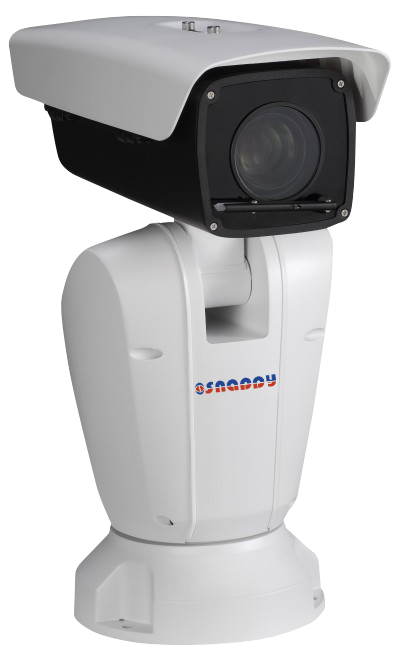

2MP Full HD 40x Laser IR System - PTZ-PS40IRZC
2MP Full HD 40x Laser IR System
Model : PTZ-PS40IRZC

Features

  • Powerful 40x optical zoom
  • Support Triple-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog, Wiper, Ultra DNR, Ultra low bitrate, EIS, ROI, Day/Night(ICR), Auto iris
  • Support Auto tracking and IVS
  • Pan range: 360° endless, speed up to 160°/s
  • Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Support intelligent 3D positioning
  • IR Distance up to 300m, IP66
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Technical Specifications

Camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 - 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6, 0Lux (IR on)
S/N Ratio More than 55dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Defog On / Off
ROI Support
Wiper Support
Lens
Focal Length 7.9mm ~ 316mm (40x Optical zoom)
Max Aperture F1.6 ~ F6.1
Focus Control Auto / Manual
Angle of View H: 41.5° ~ 1.1°
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -90° ~ 40°
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Positioning Accuracy ±0.1°
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 300m
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) /720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240
Frame Rate
Main Stream 1080P (1 ~ 25/30fps) / 720P(1~50/60fps)
Sub Stream1 D1/CIF(1 ~ 25/30fps)
Sub Stream2 720P/D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u (32kbps) / PCM (128kbps)
Interface 1/1 channel In/Out
Intelligent Function
Auto Tracking Single-scene, multiple-scene, panorama-scene
IVS (optional) Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger Mode Manual / Auto (alarm triggered)
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
RS485 1 port
Memory Slot Micro SD, Max 64GB
Alarm 7/2 channel In/Out
General
Power Supply AC 24V/5A
Power Consumption ≤100W
Working Environment -40ºC ~ 70ºC / Less than 95% RH
Ingress Protection IP66, All-metal aluminum alloy, 6000V anti-lightning surge

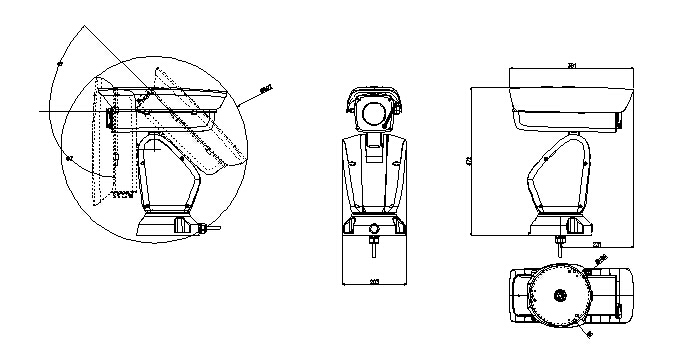

Dimensions(W×D×H) 391(mm) x 203 (mm) x 472 (mm)
Weight 10.5Kg

Application
