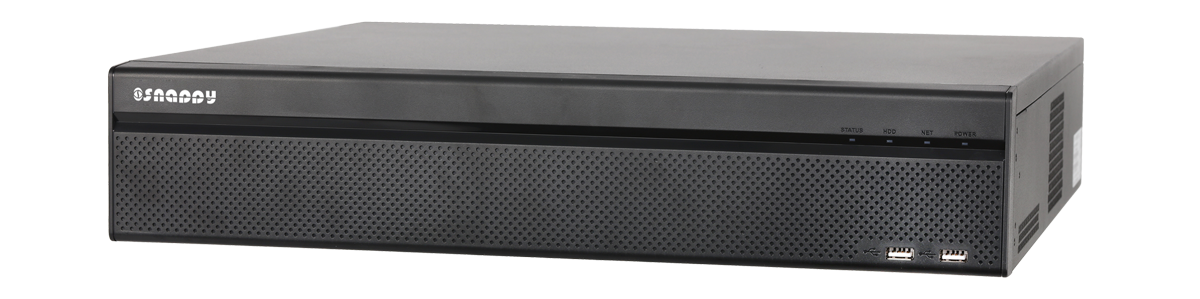

NVR8324K-16P-SS
Model : NVR8324K-16P-SS

Features

  • H.265/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 8MP Resolution or Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 16PoE ports
  • Support ANR technology to enhance the storage reliability when the network break down

Technical Specifications

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI , 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-sceen Display 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 4 Channel, NO/NC Programmable, Green Terminal Interface
Playback & Backup
Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network
Storage
Internal HDD 8 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 3 USB Ports (2 USB2.0, 1 USB3.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio & Video
IP Camera Input 16 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Recording
Compression H.265/H.264
Resolution 8Mp, 6Mp, 5Mp,4Mp, 3Mp, 1080P, 1.3Mp, 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface 1 RJ-45 Port(10/100/1000Mbps)
Ethernet port 1 Independent 1000Mbps Ethernet Port
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Snappy IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
NVR: <14.1W (Without HDD)
PoE: Max 25.5w for single port, 150w in total
Enviromental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

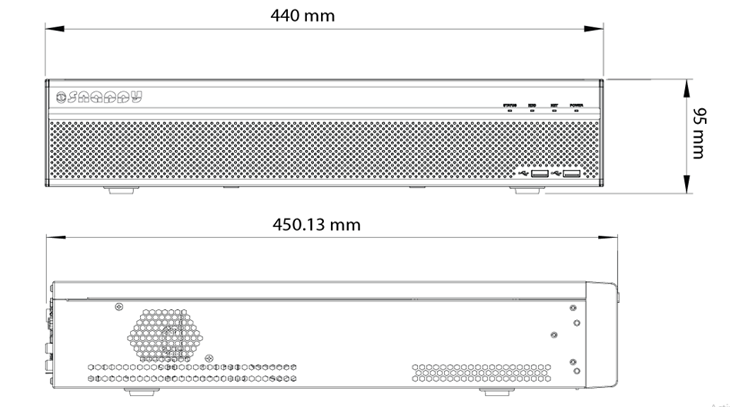

Dimension(W×D×H) 2U, 440mm×450.1mm×95mm(17.3" x 17.7" x3.7")
Net Weight 5.4kg (11.9 lb) (without HDD)
Gross Weight 9.5kg(20.9 lb)(without HDD)
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1+CAN/CSA C22.2 No.60950-1
