8/16/32 Channel 1U Pro NVR
Model : NVR2084K-PS , Model : NVR2164K-PS , Model : NVR2324K-PS

Features

  • H.265/H.264/MJPEG/MPEG4 codec decoding
  • Max 320Mbps incoming bandwidth
  • Up to 12Mp resolution preview & playback
  • HDMI/VGA simultaneous video output
  • 3D intelligent positioning with Snappy PTZ camera

Accessories

Technical Specifications

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI (1 HDMI up to 3840x2160), 1 VGA
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 8CH: 1/4/8/9
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 4 Channel, Low Level Effective, Green Terminal Interface
Relay Output 2 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A
Playback and Backup
Sync Playback 8CH: 1/4/9 16/32CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA III Ports, up to 6TB capacity for each HDD
HDD Mode Single
eSATA N/A
SAS N/A
Auxiliary Interface
Front Cover N/A
USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input 8/16/32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Recording
Compression H.265/H.264/MJPEG/MPEG4
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1 & etc.
Record Rate 320Mbps
Bit Rate 16kbps~20Mbps for per channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface 1 RJ-45 port (10/100/1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Port
PoE N/A
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Snappy IP camera, DVR, NVS and etc.), P2P
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply Single, DC12V/4A
Power Consumption <9.5W (without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

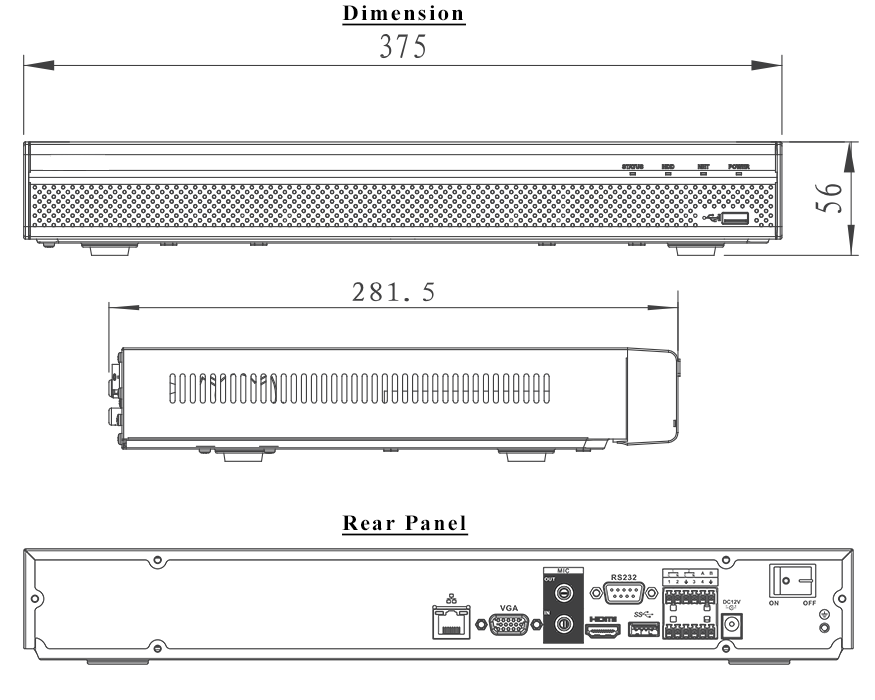

Dimensions(W×D×H) 1U, 375mm×281.5mm×56mm (14.8" x 11.1" x 2.2")
Net Weight 1.6kg (3.5 lb) (without HDD)
Gross Weight 3.2kg(7.1 lb)(without HDD)
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part15 subpartB, ANSI C63.4-2014
UL UL60950-1+CAN/CSA C22.2 No.60950-1

Application
