8/16 Channel Mini 1U 8PoE NVR
Model : NVR-18R-8P(8 channel IP camera input) , Model : NVR-116R-8P (16 channel IP camera input)

Features

  • Up to 8/16 channel IP camera input
  • Max 80Mbps incoming bandwidth
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution preview & playback
  • HDMI/VGA simultaneous video output
  • All channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Snappy PTZ camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Support IPC UPnP,8PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 8 channel(NVR-18R-8P), 16 channel(NVR-116R-8P)
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9(NVR-18R-8P), 1/4/8/9/16(NVR-116R-8P)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate 80Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 2 channel
Relay Output 1 channel
Playback & Backup
Sync Playback 1/4/8(NVR-18R-8P), 1/4/8/16(NVR-116R-8P)
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1RJ-45 port (10/100Mbps)
PoE 8 ports (IEEE802.3af/at)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Snappy IP camera, DVR, NVS and etc.),SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports, USB2.0
General
Power Supply Single, DC48V/2A
Power Consumption NVR: 10W(without HDD)
PoE: Max.25.5W (for one port)
Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) Mini 1U, 325mm×250mm×55mm
Weight 1.25KG (without HDD)

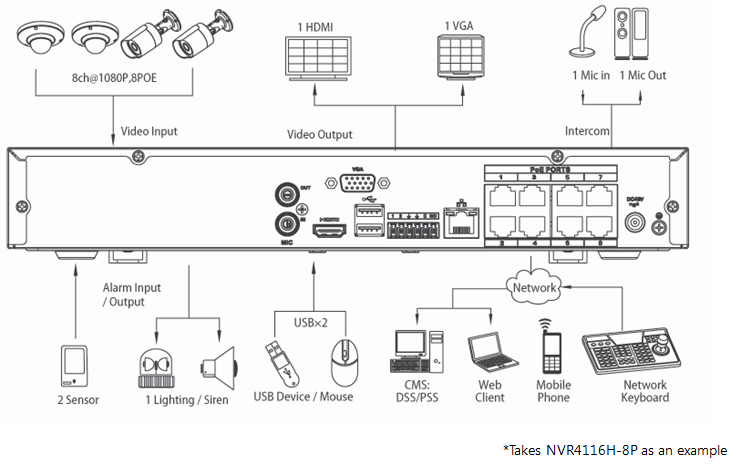

Application

1

Application

8/16 Channel Mini 1U 8PoE NVR
