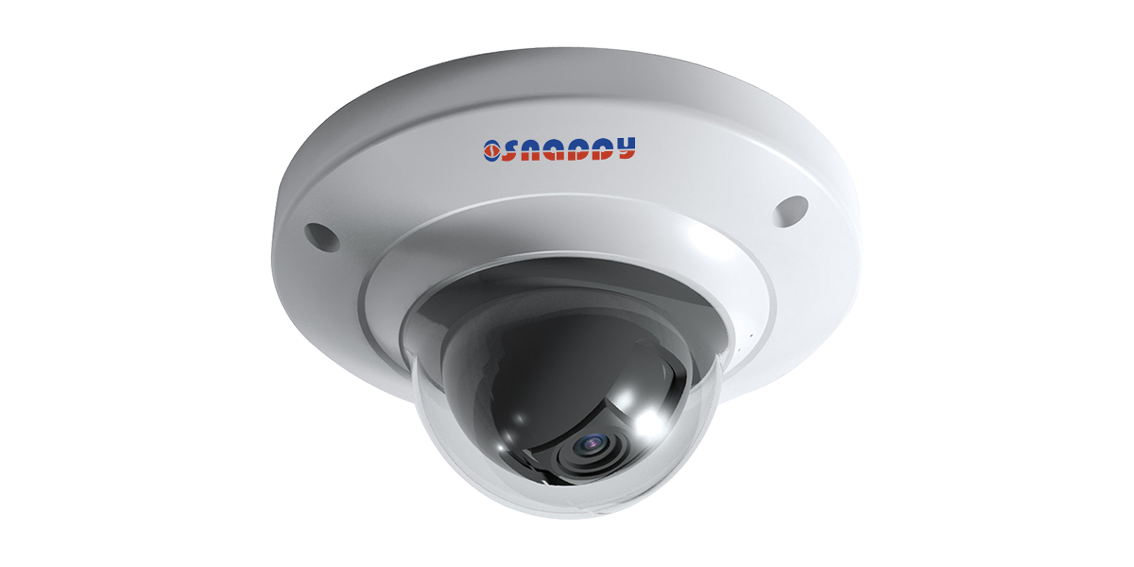

Mini Dome 2MP Full HD Camera

Model : IP-D23FC

Camera
Image Sensor	1/3” 3Megapixel progressive scan CMOS
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3(4)~1/10000
Min. Illumination	Color: 0. 1Lux/F1.6 ,0Lux (IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. IR LEDs Length	N/A
Day/Night	Auto(Electronic) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	2D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (2.8mm, 6mm optional)
Max Aperture	F1.6
Focus Control	Manual
Angle of View	H:71.9°(89.8°/45°)
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920x1080)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream	1080P/720P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 16K ~ 8192Kbps

Audio
Compression	N/A
Interface	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
ONVIF	ONVIF Profile S
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE (802.3af)
Power Consumption	Max 3W
Working Environment	-20°C~+60°C, Less than 95%RH
Ingress Protection	N/A
Vandal Resistance	N/A

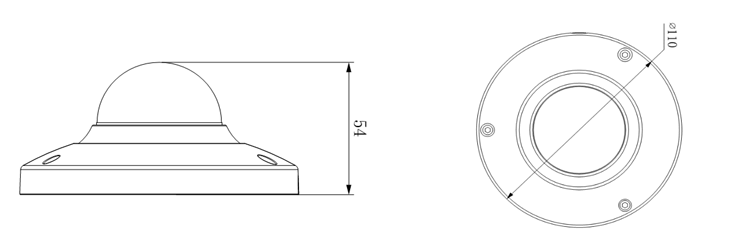

Dimensions	Φ110mm x 54mm
Weight	0.39Kg
