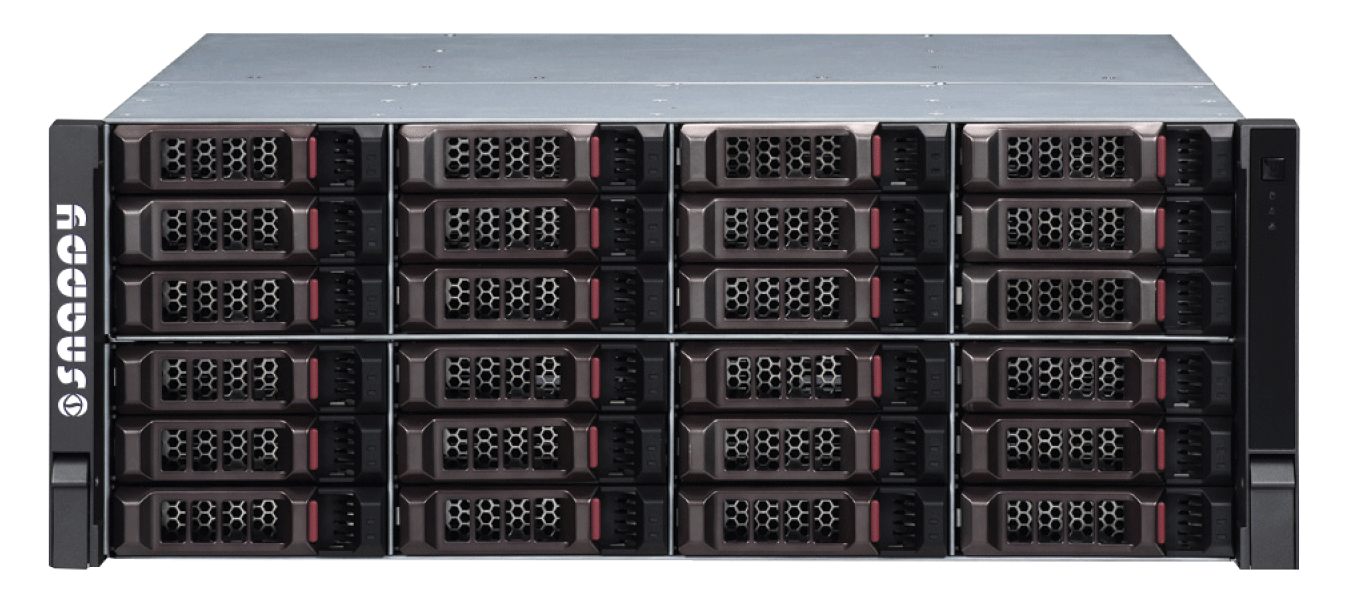

24 HDDs Network storage - NS-24
Model : NS-24

Features

  • IPSAN/NAS integration solutions
  • High-performance, scalability, easy for data storage
  • Fault-tolerant data protection mechanisms for the video surveillance system, protect clients' data security ,support various data protection modes such as RAID0,1,10,5,6,50,60,JBOD,single disk
  • Support HDDs hot-swap, non-stop running when replace the HDDs
  • Redundant fans and redundant power supply, keep 7x24-hour uninterrupted running in self-patent chassis
  • Support common industry network protocol such as SAMBA, NFS, iSCSI, CIFS, FTP, HTTP, AFP
  • Adopts WEB configuration, easy to use
  • Support external expansion

Technical Specifications

System
Main Processor Multi-core private storage CPU
Operating System Embedded LINUX
Power supply Single 500W
Fan Redundant two-ball bearing fans, MTBF>100,000 hours
Motherboard Serve class(24/7 operation)
Memory Standard 4G,include ECC, support up to 8G
Chassis All self-design, Hot-dip galvanized steel sheet(1.2mm thickened) High-precise aluminum alloy slide Self-patent drawer-type HDD rack, conform to SBB2.0
User Interface WEB GUI
Storage Protocol
Storage Protocol SAMBA, NFS, iSCSI, CIFS, FTP, HTTP, AFP
Video Property
Video Input 320ch @D1 (2Mbps),160ch @720P (4Mbps)80ch @1080P (8Mbps)
HDD Management
Hard disk 24 HDDs, support SAS,SATA HDDs, support 6TB HDDs, support 2.5 inch HDD
Raid Mode RAID0, RAID1, RAID3, RAID10, RAID5, RAID6, Raid10, Raid50, Raid60,JBOD, Single
HDD install Independent HDD holder, support hot-swap
HDD Expansion Support up to four expansion device
HDD Hot Standby Support up to four expansion device
HDD Hot Standby Support global HDD Hot Standby
Network Interface
Management Interface 1 RJ-45 10/100/1000Mbps
Data Interface 4 RJ-45 10 /100/1000Mbps, multiple Ethernet-port binding or, load balance , up to 8
General
Power supply AC 100V~240V ±10% 60Hz/50Hz
Power Consumption <400W (include HDD )
Working temperature 0℃~40℃
Working Humidity 10%~80%(non-condensation)
Storage Temperature -20℃~70℃
Storage Humidity 5%~90%(non-condensation)
Working Elevation -60m~3000m
Dimension(W×D×H) 446mm×175mm×495mm
Weight 26.7kg
Mounting 19 feet standard rack-mounted
