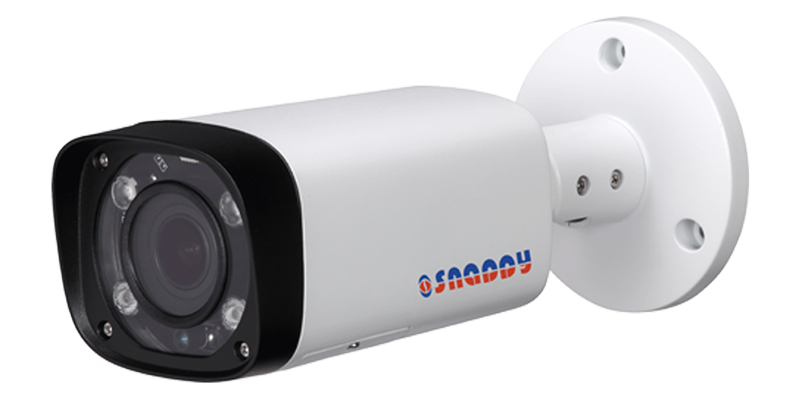

Bullet 1.3MP WDR IR Camera - IP-B103MWC-SS
Model : IP-B103MWC-SS

Features

  • 1/3” 1.3Megapixel progressive CMOS
  • H.264+ & H.264 dual-stream encoding
  • 25/30fps@1.3M(1280×960)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Micro SD card slot, up to 128GB
  • 2.7~12mm varifocal lens
  • Max IR LEDs Length 60m
  • IP67,PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive CMOS
Effective Pixels 1280(H) x960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 60m(197ft)
IR On/Off Control Auto/ Manual
IR LEDs 4
Lens
Lens Type Motorized(-ZS),Manual(-VFS)
Mount Type Board-in
Focal Length 2.7mm~12mm
Max. Aperture F1.4
Angle of View H:99°~37°, V:52°~21°
Focus Control Motorized(-ZS),Manual(-VFS)
Close Focus Distance 0.3m
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.264+/H.264
Streaming Capability 2 Streams
Resolution 1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate 1.3M (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording
Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE(802.3af)(Class 0)
Power Consumption <12.95W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal

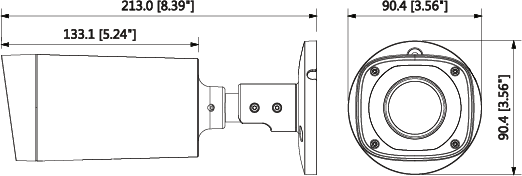

Dimensions 72mm×80mm×212.8mm ((2.8" x 3.1"x 8.4"))
Net Weight 0.685Kg (1.51lb)
Gross Weight 0.86Kg (1.90lb)
