4/8/16 Channel Smart 1U Lite NVR
Model : NVR1104HS-SS , Model : NVR1108HS-SS , Model : NVR116HS-SS

Features

  • H.264+/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 4PoE ports
  • Support ANR technology to enhance the storage reliability when the network break down

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI, 1 VGA
Resolution 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display 4CH: 1/4
8CH: 1/4/8/9
16CH: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 4CH: 1/4
8CH: 1/4/8
16CH: 1/4/8/16
Search Mode Time /Date, Alarm, MD and Exact Search(accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA III Port, Up to 6TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (2 USB2.0)
RS232 N/A
RS485 N/A
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input 4/8/16 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Recording
Compression H.264+/H.264/MJPEG
Resolution 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 80Mbps
Bit Rate 16kbps ~ 20Mbps for per channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface 1 RJ-45 Port (10/100Mbps)
Ethernet Port 1 Independent 100Mbps Ethernet Port
PoE 4 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,IP Search (Support Snappy IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply DC12V/2A
Power Consumption <10W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

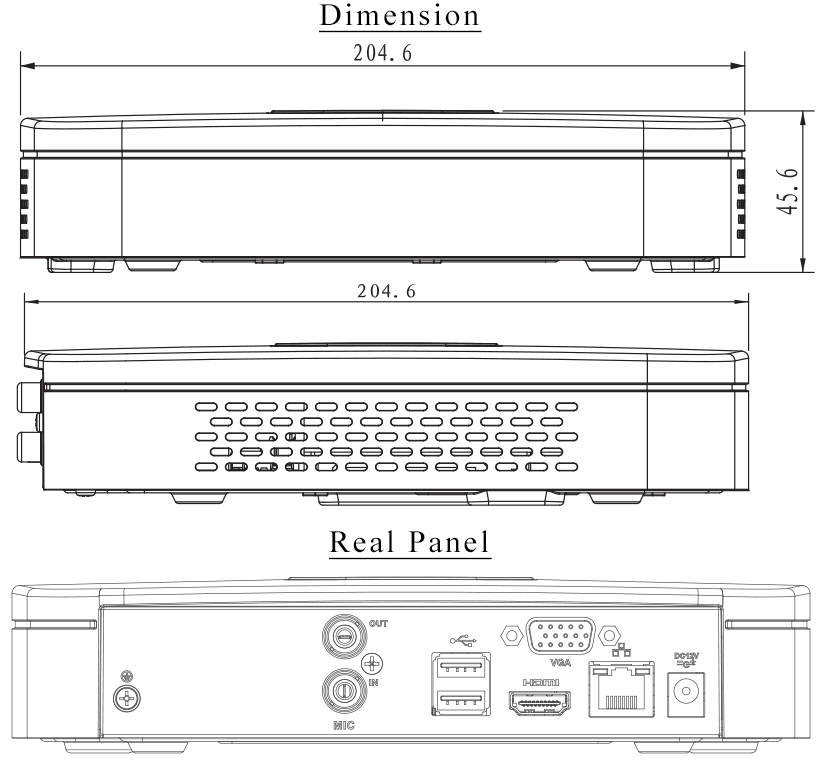

Dimensions Smart 1U, 204.6mm×204.6mm×45.6mm(8.1" x 8.1" x 1.8")
Net Weight 0.4kg (0.88 lb) (without HDD)
Gross Weight 1.5kg(3.31 lb)(without HDD)
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1+CAN/CSA C22.2 No.60950-1
