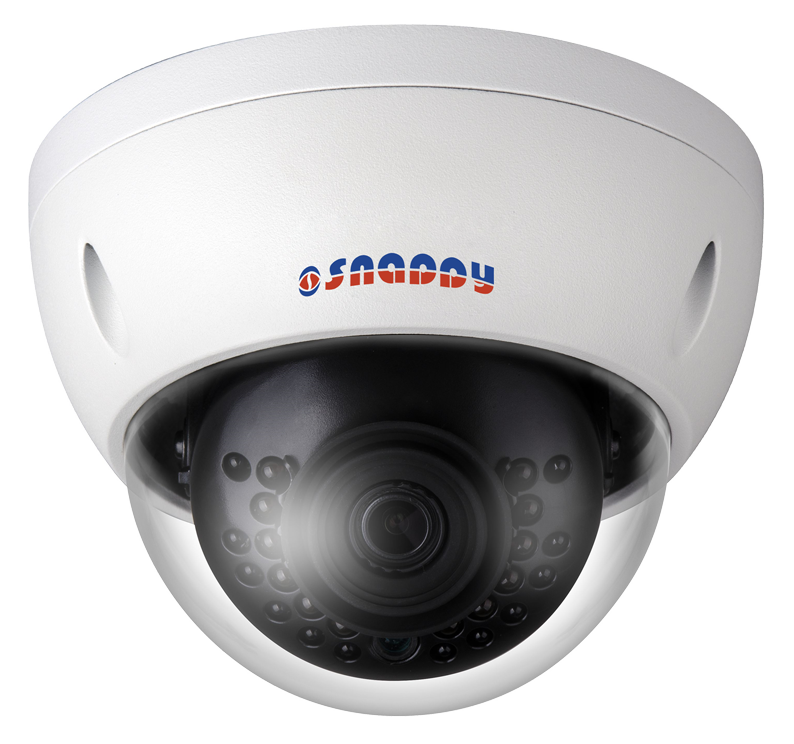

Mini-Dome 3MP IR Camera
Model : IP-MD2FC-SS

Features

  • 1/3” 1.3Megapixel progressive CMOS
  • H.264+ & H.264 dual-stream encoding
  • 25/30fps@1.3M(1280x960)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens (3.6mm optional)
  • Max. IR LEDs Length 30m
  • IP67, IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progresive CMOS
Effective Pixels 1280(H)x960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.5Lux/F2.5(Color), 0Lux/F2.5(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 24
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.5/F2.5
Angle of View H:85°/57°, V:44°/31°
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
Video
Compression H.264+/H.264
Streaming Capability 2 Streams
Resolution 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate 1.3M (1 ~ 25/30fps)s),D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE(802.3af)(Class 0)
Power Consumption <3.7W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal

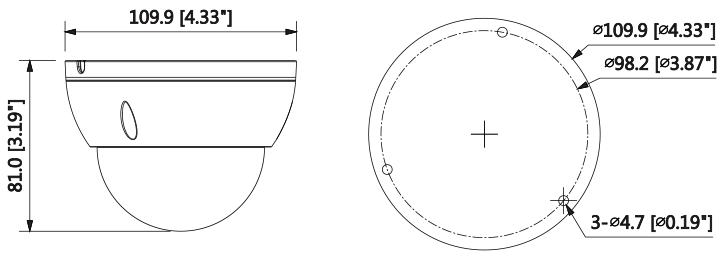

Dimensions Φ109.9mm × 81mm (4.33" x 3.19")
Net Weight 0.34Kg (0.75lb)
Gross Weight 0.47Kg (1.04lb)

Application

1

Application

Mini-Dome 3MP IR Camera
