16/32 Channel 16PoE 2U Lite NVR
Model : NVR81616P-SS,NVR83216P-SS

Features

  • H.265/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • HDMI/VGA/TV simultaneous video output
  • Support IPC UPnP, 16PoE ports
  • Support ANR technology to enhance the storage reliability when the network break down

Accessories

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI, 1 VGA, 1TV
Resolution 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP,Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss and Tampering
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 4 Channel, NO/NC Programmable, Green Terminal Interface
Playback & Backup
Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Storage
Internal HDD 8 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA 1 eSATA Port
Auxiliary Interface
USB 3 USB Ports (2 USB2.0, 1 USB3.0)
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
IP Camera Input 16/32 Channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Recording
Compression H.264+/H.264/MJPEG
Resolution 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss) Alarm, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface 1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Port
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP Search(Support Snappy IP camera, DVR, NVS etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption <40W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

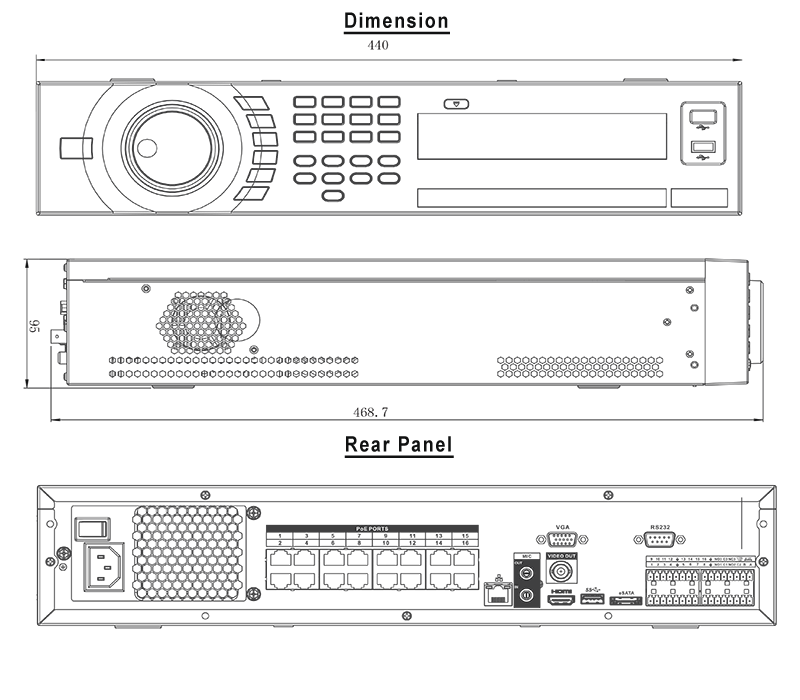

Dimension 2U, 440mm×468.7mm×95mm (17.3" x 18.5" x 3.7")
Net Weight 7kg (15.4 lb) (without HDD)
Gross Weight 9.5kg(20.9 lb)(without HDD)
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1+CAN/CSA C22.2 No.60950-1

Application

1

Application

16/32 Channel 16PoE 2U Lite NVR
