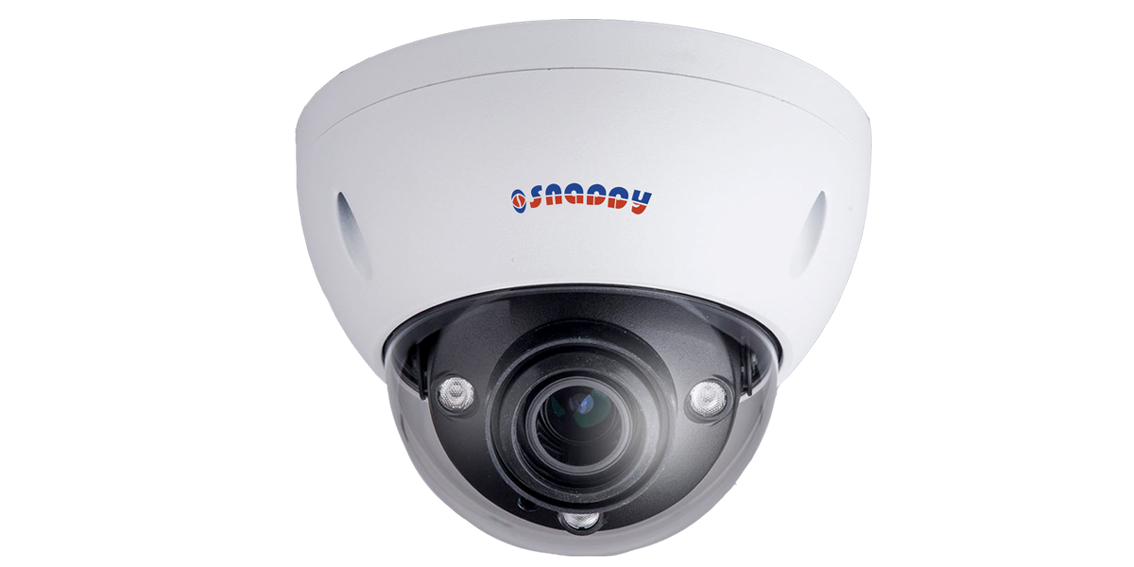

Vandal-proof IR Dome 2MP HD WDR Camera
Model : IP-1MB2FWC-US

Features

  • 1/2.7” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080P(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~12mm motorized lens
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 50m
  • Micro SD memory, IP67, IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max.IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Motorized
Angle of View H: 99°~34°
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/H.264B/H.264H/ MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1~25/30fps)
Third Stream 720P(1~13/4fps)
Bit Rate H.264: 32Kbps~10Mbps
Corridor Mode Support
Audio
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
Smart Function(Optional)
Smart detection Tripwire, Intrusion, Scene change, Abandoned/Missing, Audio detect,Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE (802.3af)
Power Consumption Max 10W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

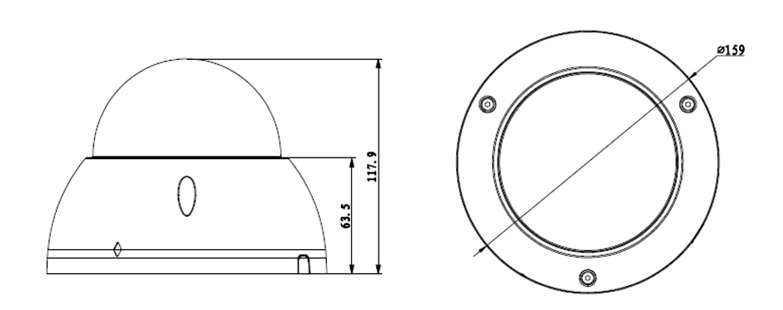

Dimensions Φ159mm×117.9mm
Weight 0.8Kg

Application
