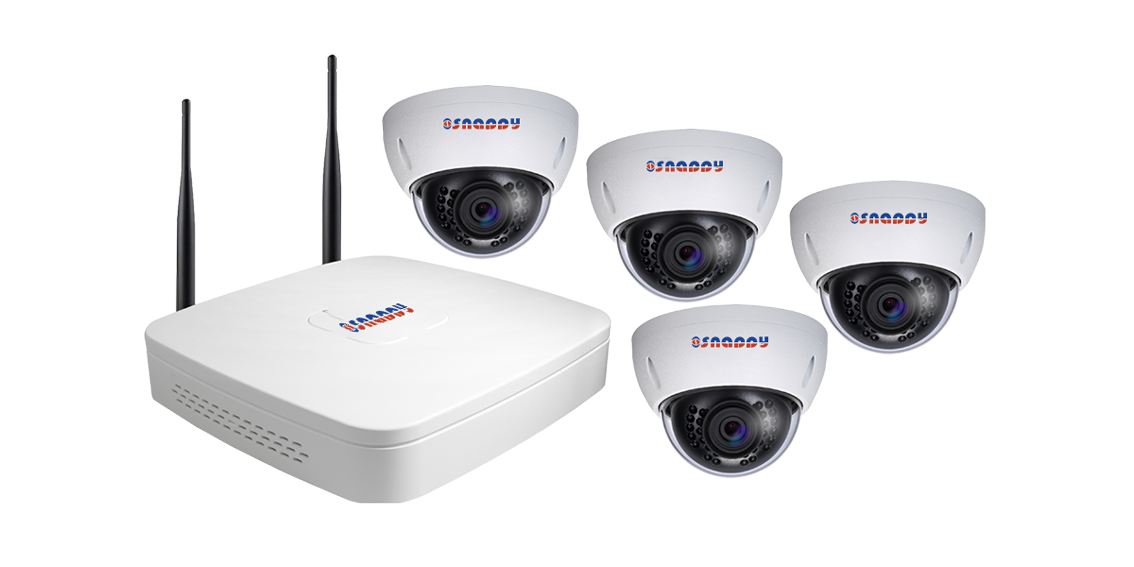

Dome 720P Wi-Fi Kit
Model : WNVR-14DFC

Features

  • Easy installation, plug & play
  • Support P2P, allowing easier home applications
  • Support WPS, make easier connection
  • H.264 dual-stream video compression
  • HDMI/VGA simultaneous video output
  • All channel 720P recording
  • Multiple network monitoring: web-browser, smart phone/tablet app

Technical Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel
Two-way Talk 1 channel Input,1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) & etc.
Record Rate 80Mbps
Bit Rate 48~8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1RJ-45 port (10/100Mbps)
Wireless Network Built-in Wifi module, 2 WiFi Antenna
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Snappy IP camera, DVR, NVS and etc.), P2P
Max User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports (1 Rear), USB2.0
General
Power Supply DC12V/2A
Power Consumption NVR: 10W (without HDD)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Camera
Image Sensor 1/4” 1Megapixel CMOS
Effective Pixels 1280 (H) x 720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F1.8 (Color),0Lux/F1.8(IR on)
S/N Ratio More than 50dB
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(Electronic)/Color/B/W
Backlight Compensation BLC/ HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.8/3.6/6mm lens optional
Max Aperture F1.8
Focus Control Manual
Angle of View H: 70°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 720P(1280×720) / D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 16K ~ 8192Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Wi-Fi Wi-Fi(802.11b/g)
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V
Power Consumption <4W
Working Environment -30°C~+50°C, Less than 95%RH
Ingress Protection IP66
Vandal Resistance IK10
Carton
Dimension(W×D×H) 378*216*322mm
