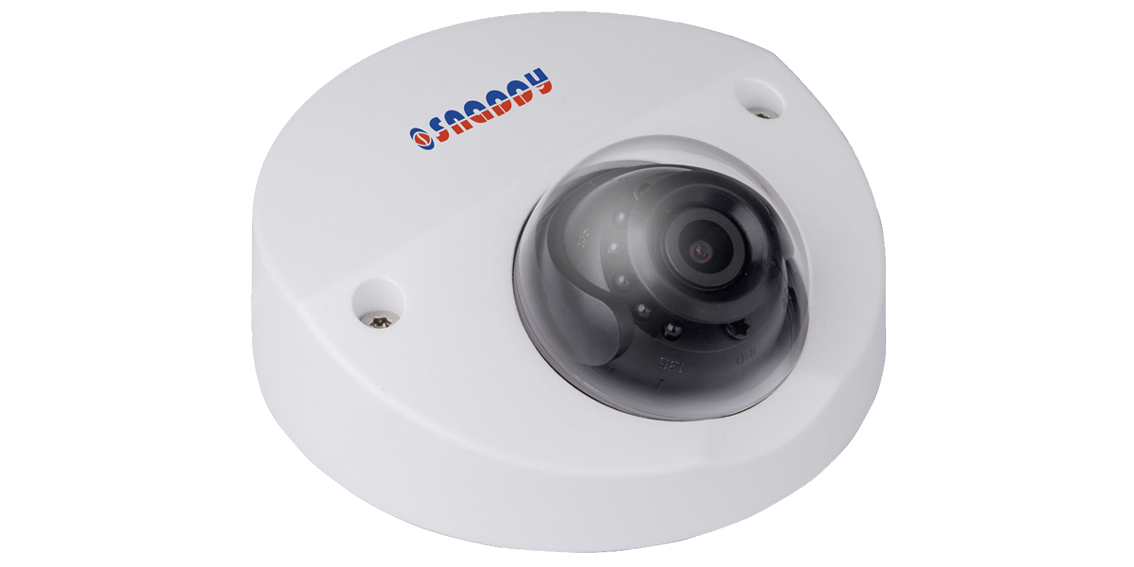

Vandal-proof IR Wedge Dome 2MP HD WDR Camera
Vandal-proof IR Wedge Dome 2MP HD WDR  Camera
Model : IP-D12FWC-US

Features

  • 1/2.8” 2Megapixel progressive scan CMOS
  • H.264&MJPEG triple-stream encoding
  • 25/30fps@1080P(1920×1080)
  • Smart Detection supported
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR LEDs Length 20m
  • IP67, IK10, PoE

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H) ´ 1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01lux/F2.0(color),0lux/F2.0 (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max.IR LEDs Length 20m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm,6mm optional)
Max Aperture F2.0(F2.0,F2.0)
Focus Control Manual
Angle of View H:84°(106°/56°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1~25/30fps)
Third Stream 720P(1~13/4fps)
Bit Rate H.264: 32Kbps~10Mbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Smart Function(Optional)
Smart detection Tripwire, Intrusion, Scene change,Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 5W
Working Environment -40°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

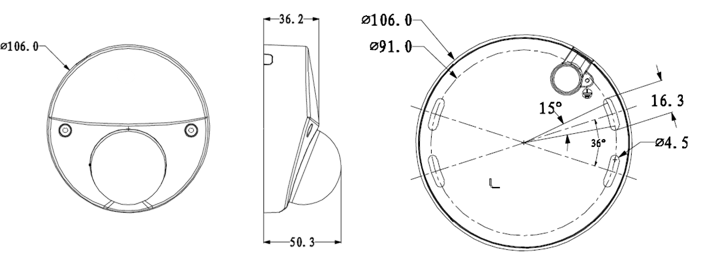

Dimensions Φ106mm×50.3mm
Weight 0.35kg

Application

1

Application

Vandal-proof IR Wedge Dome 2MP HD Camera
