2MP Full HD WDR Wi-Fi IR Wedge Dome Camera

Model : IP-WD2FWC-WS

Camera
Image Sensor	1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H) ´ 1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Min. Illumination	0.01lux/F2.0(color),0lux/F2.0 (IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. IR LEDs Length	20m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / WDR(120dB)
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (2.8mm,6mm optional)
Max Aperture	F2.0(F2.0,F2.0)
Focus Control	Manual
Angle of View	H:93°(120°/63°)
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264/H.264H/H.264B/MJPEG
Resolution	1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream	1080P/720P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Third Stream	720P(1-13/4fps)
Bit Rate	H.264: 32K ~ 10Mbps
Corridor Mode	Support

Audio
Compression	G.711a/ G.711u/ AAC
Interface	Built-in Mic
Smart Function(Optional)
Smart detection	Tripwire Intrusion Abandoned/Missing Scene Change Audio detect Face detect
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n) 50m(open field)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
Compatibility	ONVIF,PSIA,CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD Max 128GB
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V
Power Consumption	IP-D12FC-W : <5W IP-D2FC-W : Max 5W
Working Environment	30°C~+50°C, Less than 95% RH
Ingress Protection	IP66
Vandal Resistance	N/A

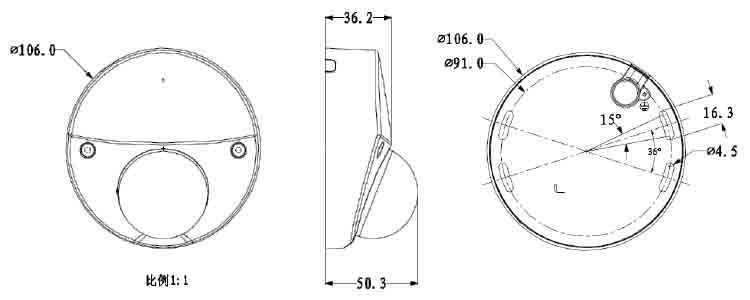

Dimensions	Φ 106mm× 50.3mm
Weight	0.35kg
