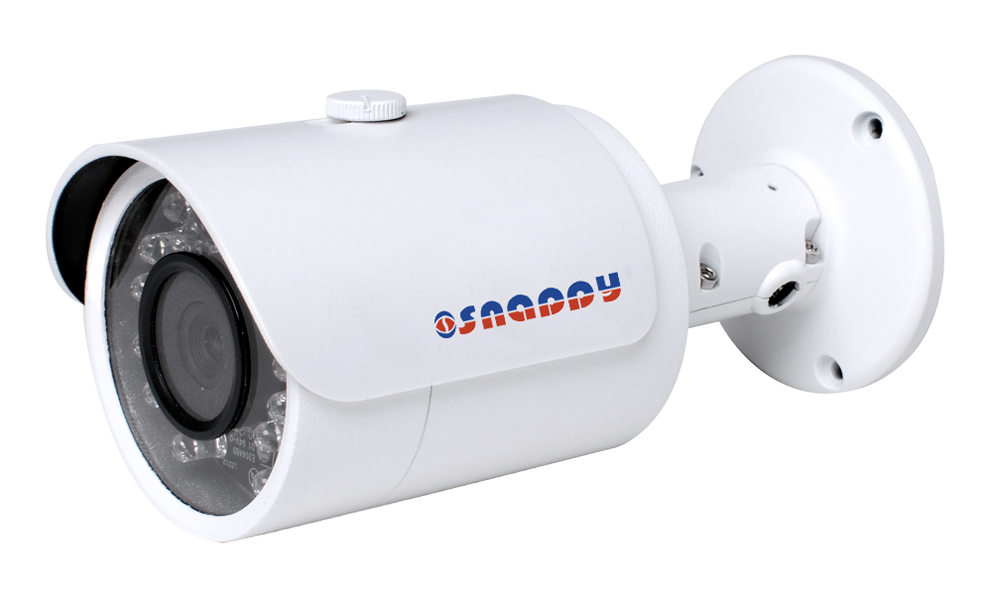

Small Bullet 2MP Camera
Model : IP-B13FC

Features

  • 1/3” 3Megapixel progressive scan CMOS
  • H.264&MJPEG dual-stream encoding
  • Max 25/30fps@1080P(1920x1080)/720P(1280x720)
  • Day/Night(ICR), 2DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Max. IR LEDs Length 30m
  • IP66, DC12V, PoE

Technical Specifications

Camera
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2048(H)´1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 1Lux/F1.6 (Color) ;0Lux/F1.6(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC/ HLC
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm(6mm optional)
Max Aperture F1.6(F1.8)
Focus Control Manual
Angle of View H: 72.5°(44°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1~25/30fps)
Bit Rate H.264: 16K ~ 8192Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 6W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A

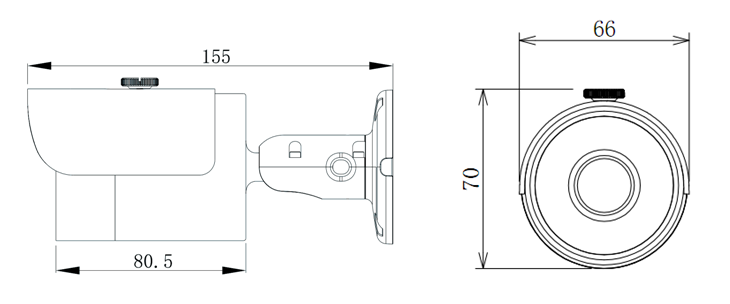

Dimensions 70mm×66mm×155mm
Weight 0.62kg

Application

1

Application

Small Bullet 2MP Camera
