Bullet 12x 2MP IR Camera
Features Technical Specifications Downloads High Resolution Images

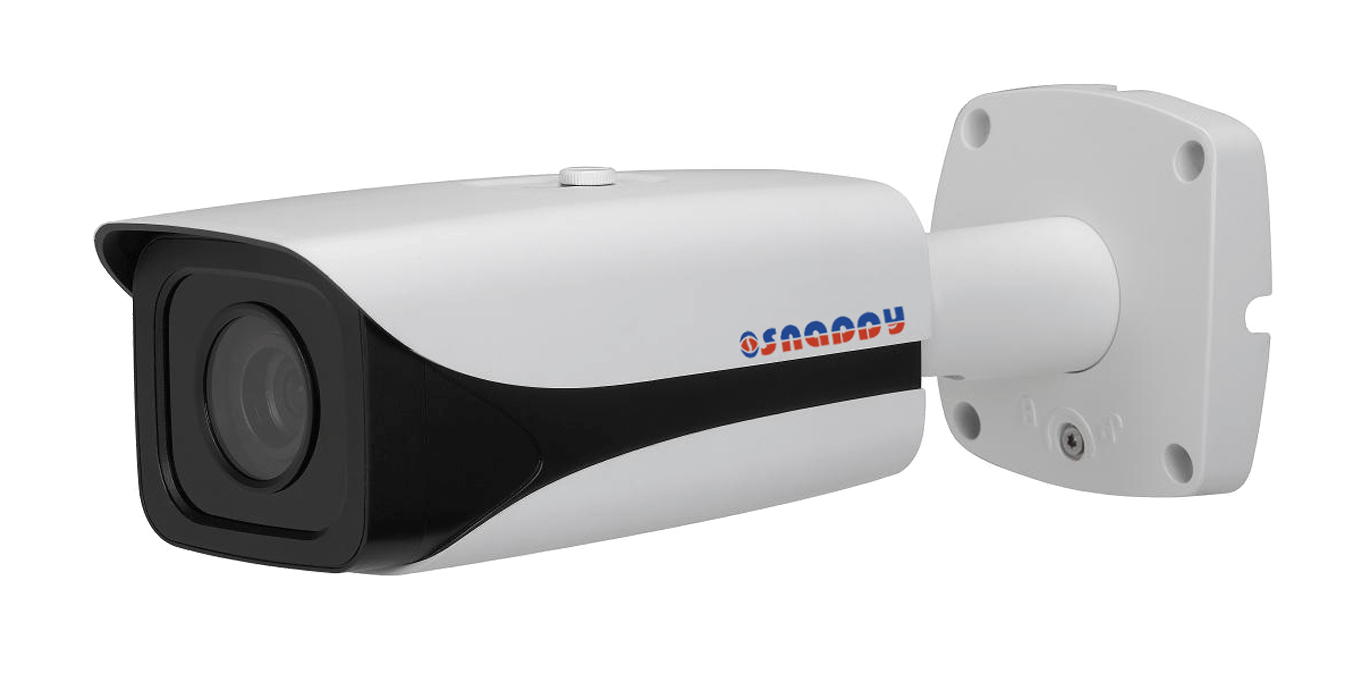

Bullet 12x IR Camera
Model : IP-B212ZLC

Features

  • 1/2.8” 2Megapixel progressive scan CMOS
  • 5.1~61.2mm 12x optical zoom
  • H.264&MJPEG dual-stream encoding
  • 25/30fps@1080(1920×1080)
  • WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Built-in 1/1 alarm in/out
  • Micro SD memory, IP66, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel Exmor CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 00. 05Lux/F1.6( Color), 0Lux/F1.6(IR ON)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 100m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 5.1mm~61.2mm(12x optical zoom)
Max Aperture F1.6~F3.0
Focus Control Manual/Auto
Angle of View H: 51.3°~4.64°
Lens Type motorized/ Auto Iris(DC)
Mount Type Board-in Type
Close Focus Distance 100mm~1000mm
Varifocal Speed 3.8S
Video
Compression H.264/ MJPEG
Resolution 1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD card, Max 64GB
Alarm 1/1 channel In/Out
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 15W
Working Environment -30°C~+60°C, less than 95% RH
Ingress Protection IP66

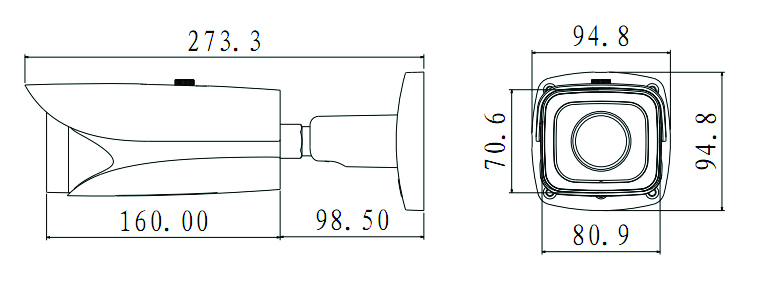

Dimensions 273.3mm × 94.8mm× 94.8mm
Weight 1.3kg

Downloads

1

Catalog : Bullet 12x 2MP IR Camera

Click below link to download the catalog for the Bullet 12x 2MP IR Camera - Model : IP-B212ZLC

Download Catalog
2

Application

Bullet 12x IR Camera
