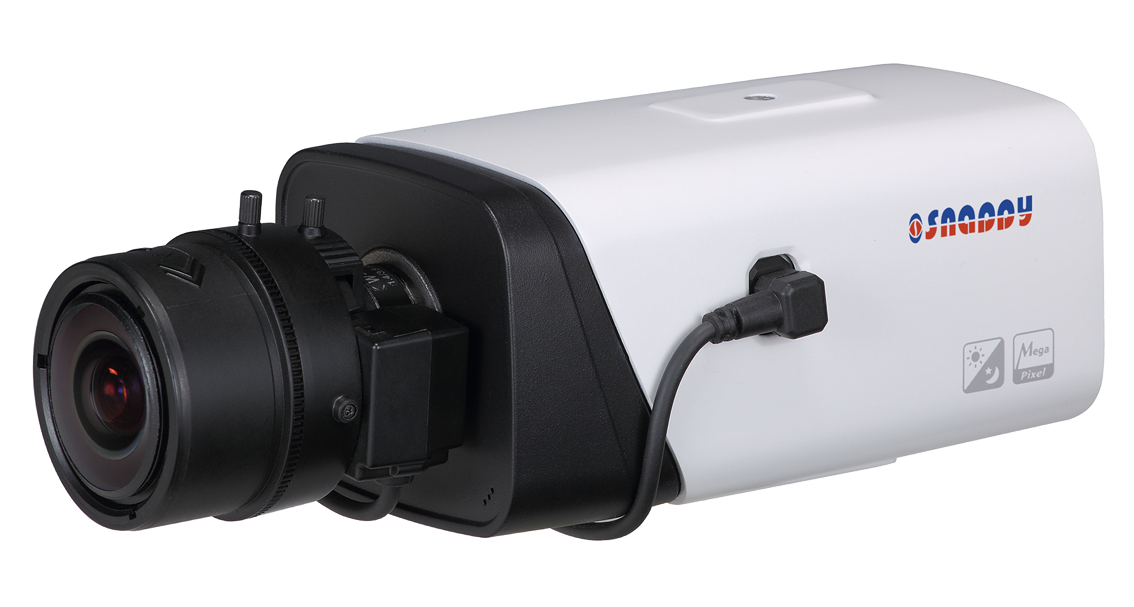

WDR 2MP Full HD Camera

Model : IP-BX2C

Camera
Image Sensor	1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Min. Illumination	0. 01Lux/F1.2(Color), 0.001Lux/F1.2 (B/W)
S/N Ratio	More than 50dB
Video Output	1 channel BNC（1.0Vp-p，75Ω）
Camera Features
Max.IR LEDs Length	N/A
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / WDR(120dB)
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Ultra Defog	Support
Smart focus	ABF
Lens
Mount Type	C/CS
Video
Compression	H.264/H.264B/H.264H/ MJPEG
Resolution	1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288)
Frame Rate
Main Stream	1080P/720P(1~25/30fps)
Sub Stream	D1/CIF(1~25/30fps)
Third Stream	720P(1~13/4fps)
Bit Rate	H.264: 32Kbps~10Mbps
ROI	Up to 4 areas

Audio
Compression	G.711a / G.711u/AAC
Interface	1/1 channel In/Out(Built-in Mic)
Smart Function(Optional)
Smart detection	Tripwire, Intrusion, Scene change, Abandoned/Missing, Audio detect,Face detect
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 128GB
RS485	1
Alarm	2/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V/AC24V, PoE (802.3af)
Power Consumption	Max 10W (ABF&ICR on)
Working Environment	-30°C~+60°C, Less than 95% RH
Ingress Protection	N/A
Dimensions	74.1mm×65.5mm×135.4mm
Weight	0.3Kg
