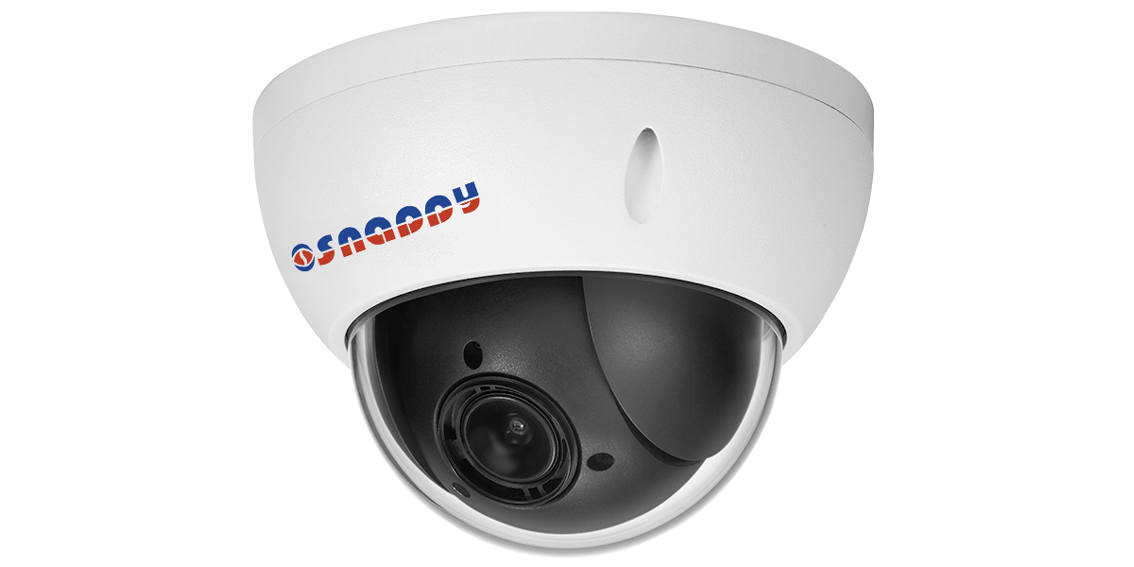

Dome 2MP Full HD Mini PTZ Camera - PTZ-D14ZLC
Dome 2MP Full HD Mini PTZ Camera
Model : PTZ-D14ZLC

Features

  • 4x optical zoom
  • H.264 & MJPEG Triple-streams encoding
  • Max. 25/30fps@1080P(19201080) & 50/60fps@720P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100°/s pan speed
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, POE

Technical Specifications

Camera
Image Sensor 1/2.7” CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 50dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 2.7mm~11mm(4x Optical zoom)
Max Aperture F1.6~ F2.8
Focus Control Auto / Manual
Angle of View H: 93.5° ~ 30.24°
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240)
Frame Rate
Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
General
Power Supply DC12V, POE
Power Consumption 10W
Working Environment -30ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66 & IK10

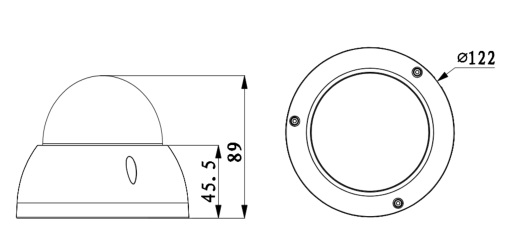

Dimensions Φ122 (mm) x 89 (mm)
Weight 0.6kg
