4/8 Channel Compact 1U 4PoE 4K&H.265 Lite NVR
4/8 Channel Compact 1U 4PoE 4K&H.265 Lite NVR
Model : NVR1084K4P-SS , Model : NVR1044K4P-SS

Features

  • H.265/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 4PoE ports
  • Support ANR technology to enhance the storage reliability when the network break down

Technical Specifications

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI, 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4
8CH: 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 4CH: 1/4
8CH: 1/4/8
Search Mode Time /Date, MD and Exact Search(accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (2 USB2.0)
RS232 N/A
RS485 N/A
Third-party Support
Third-party Support Snappy, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input 4/8 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Recording
Compression H.265/H.264
Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 80Mbps
Bit Rate 16kbps~20Mbps for per channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface 1 RJ-45 Port (10/100Mbps)
Ethernet Port 1 Independent 100Mbps Ethernet Port
PoE 4 ports (IEEE802.3at/af)(4Mbps is recommended per channel)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,IP Search (Support Snappy IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply DC48V/1.5A
Power Consumption NVR: <7.5W (Without HDD) PoE: Max 25.5w for single port, 50w in total
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

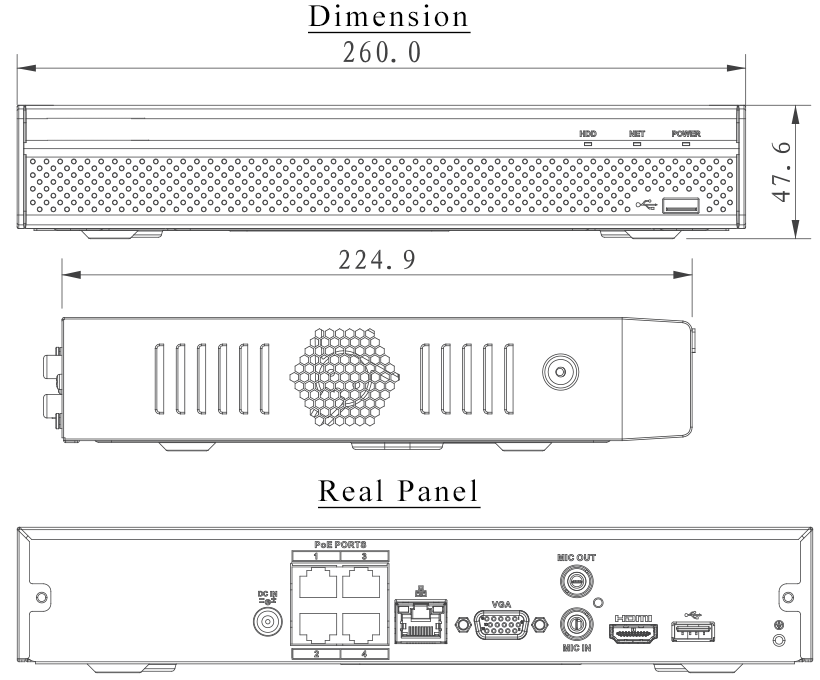

Dimensions Compact 1U, 260mm×224.9mm×47.6mm(10.2" x 8.9" x 1.9")
Net Weight 0.8kg (1.76 lb) (without HDD)
Gross Weight 1.6kg(3.53 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1+CAN/CSA C22.2 No.60950-1

Application

1
