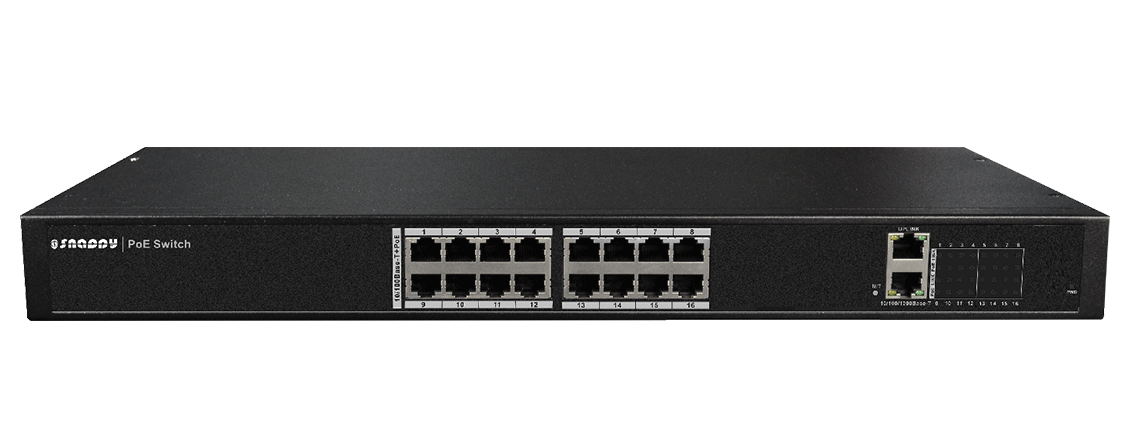

POE Switch - 16P-POE
Model : 16P-POE

Features

  • Two-layer network management POE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Support spanning tree protocol STP/RSTP
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Support one-key recovery of IP address & user password

Technical Specifications

Model 16P-POE
Ethernet port 2*10/100/1000 Base-T, 16*10/100 Base-T（PoE power supply)
PoE power consumption Each power ≤30W， Total≤370W
PoE protocol IEEE802.3af, IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%－90%
Power AC 100～２40V
High&Low temperature -10°C~55°C
Weight 2.69kg
Dimension (W x D x H ) 442mm×124mm×44.5mm

Downloads

1

Catalog : POE Switch - 16P-POE

Click below link to download the catalog for the POE Switch - Model : 16P-POE

Download Catalog
