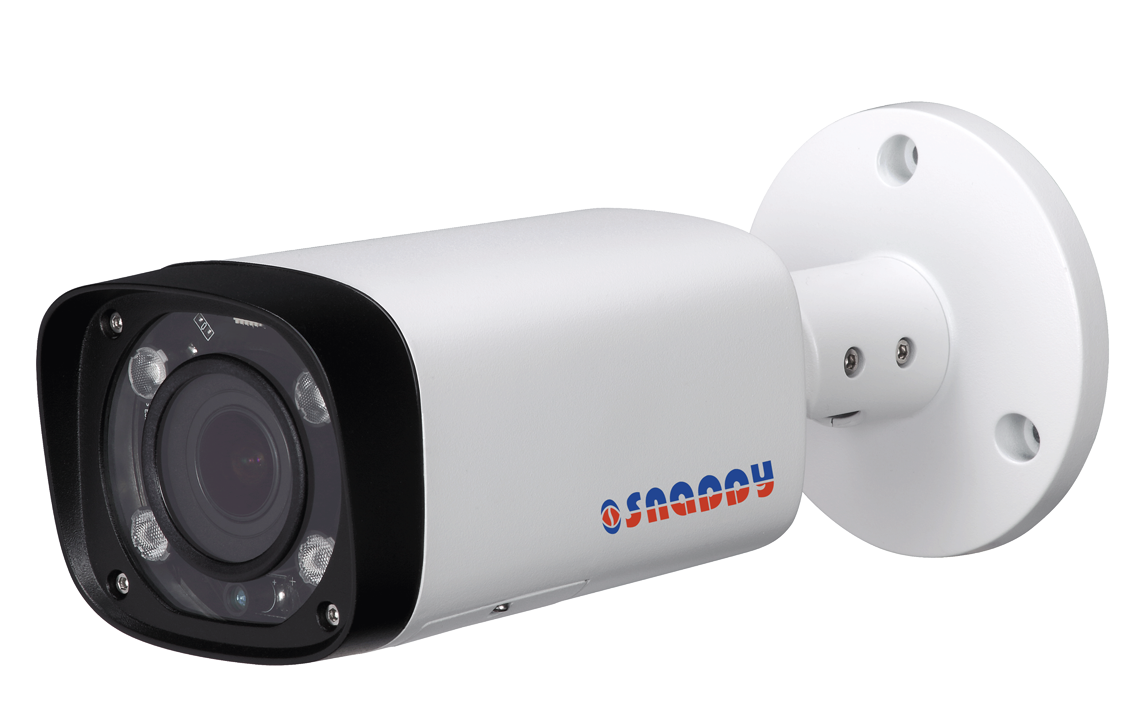

Bullet 4MP WDR IR Camera - IP-B24MVFC
Model : IP-B24MVFC

Features

  • 1/3” 4Megapixel progressive CMOS
  • H.264+ & H.264 dual-stream encoding
  • 20fps@4M(2688x1520) & 25/30fps@3M (2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Micro SD card slot, up to 128GB
  • 2.7~12mm varifocal lens
  • Max IR LEDs Length 60m
  • IP67, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688(H) x1520(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto 1/3(4)~1/100000s
Minimum Illumination 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 60m(197ft)
IR On/Off Control Auto/ Manual
IR LEDs 4
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 2.7mm~12mm
Max. Aperture F1.4
Angle of View H:100°~35°, V:54°~20°
Focus Control Auto
Close Focus Distance 0.3m
PTZ
Pan/Tilt Range Pan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.264+
Streaming Capability 2 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate 4M(1~20fps)/3M(1~25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording
Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <12.95W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F)
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F)
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 72mm×80mm×212.8mm ((2.8" x 3.1"x 8.4"))
Net Weight 0.685Kg (1.51lb)
Gross Weight 0.86Kg (1.90lb)
