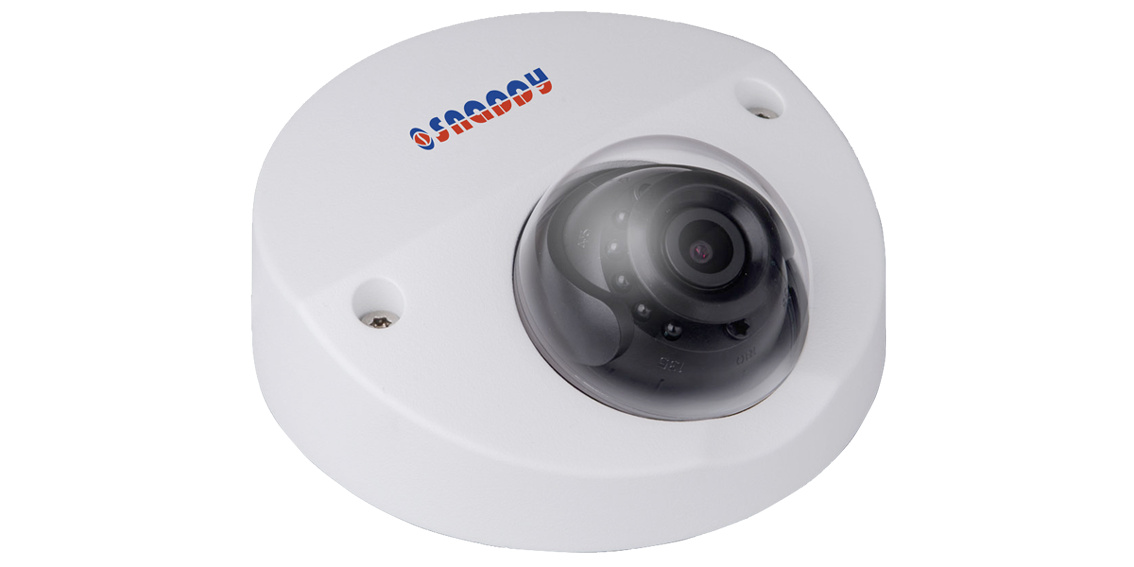

Dome Wedge 1.3MP IR Camera
Model : IP-D2103FC

Features

  • 1/3” 1.3Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080(1920×1080)
  • Smart Detection supported
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • 1/1 Alarm in/out, 1/1 audio in/out(only for -AS)
  • Max. IR LEDs Length 20m
  • Micro SD memory (only for -AS), IP67, IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H) ´ 960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F2.0(Color),0Lux/F2.0 (IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm(2.8mm,6mm optional)
Max Aperture F2.0(F1.8/F2.0)
Focus Control Manual
Angle of View 74°/86°/47°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-14/7fps)
Bit Rate H.264: 32K bps~ 10Mbps
Corridor Mode IP-B12MVFC : Support
Audio
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
Smart Function(Optional)
Smart detection Tripwire, Intrusion, Abandoned/Missing, Scene Change, Audio detect, Face detect.
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD Max 128GB(only for -AS)
RS485 N/A
Alarm 1/1 channel In/Out(only for -AS)
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

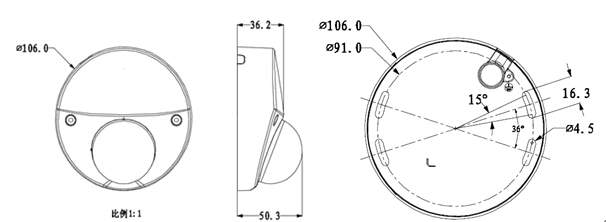

Dimensions Φ106mm×50.3mm
Weight 0.35kg

Application

1

Application

Dome Wedge 1.3MP IR Camera
