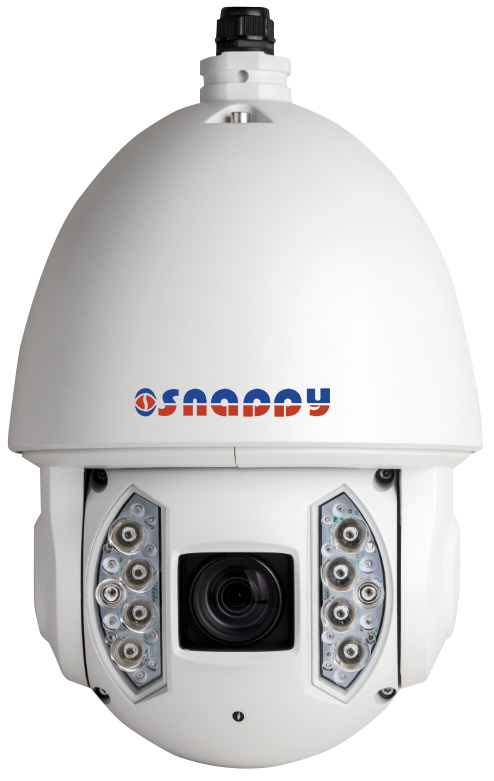

30x WDR Star Light IR Camera
Model : PTZ-D1SL30IRZC

Features

  • Powerful 30x optical zoom
  • Ultra-low light star-light camera
  • H.264 & MJPEG Three-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
  • Auto-tracking and IVS
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP67, IK10, Hi-POE
  • IR Distance up to 200m

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/1.9" CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)
S/N Ratio More than 56dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
EIS Support
Defog Support
Lens
Focal Length 6mm~180mm(30x Optical zoom)
Max Aperture F1.6 ~ F4.8
Focus Control Auto / Manual
Angle of View H: 51.2° ~ 1.8°
Close Focus Distance 100mm~ 1000mm
IR Light
Laser Light Control Auto / Manual
Laser Distance Up to 500m
Angle of Laser Light 2° ~ 60°
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
Auto Tracking Single-scene, multiple-scene, panorama-scene
IVS (optional) Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger Mode Manual / Auto (alarm triggered)
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 7/2 channel In/Out
General
Power Supply AC24V/3A(±25%), Hi-POE
Power Consumption 20W, 43W (IR on)
Working Environment -40ºC ~ 70ºC / Less than 90% RH
Ingress Protection P67, IK10

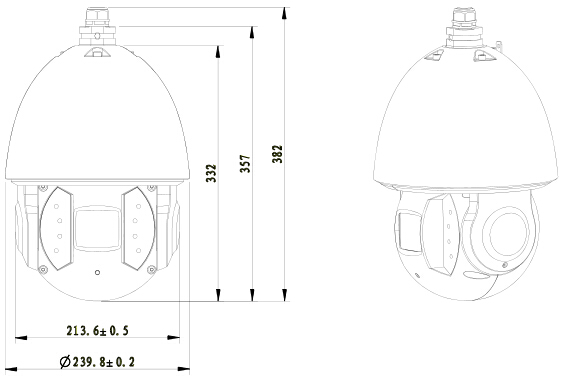

Dimensions Φ240(mm) x 357(mm)
Weight 6.75kg
