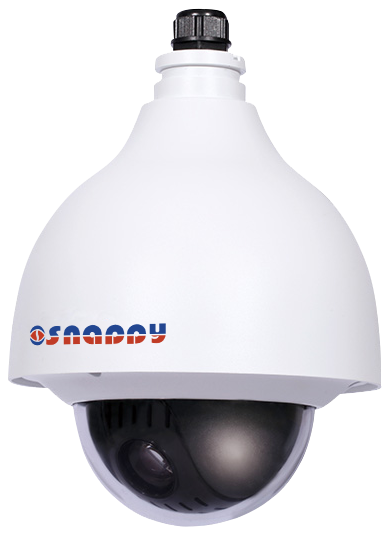

12x Mini PTZ Camera
Model : PTZ-D1210ZLC

Features

  • Powerful 12x optical zoom
  • Support dual-streams encoding
  • Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
  • WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 300°/s pan speed, 360° continuous pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IP66, IK10(optional), POE+

Accessories

Technical Specifications

Camera
Image Sensor 1/2.8" CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Horizontal Resolution >1000TVL
Scanning System Progressive
Electronic Shutter Speed 1/3 ~ 1/30,000s
Min. Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
S/N Ratio More than 55dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 5.1 mm~61.2mm (12x Optical zoom)
Max Aperture F1.6~ F3.0
Focus Control Auto / Manual
FOV-H H: 59.3° ~ 5.2°
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s
Preset Speed Pan: 300°/s; Tilt:200°/s
Preset 300(DH-SD)
PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 2/1 channel In/Out
General
Power Supply AC24V/1.5A (±10%), POE plus (802.3at)
Power Consumption 12W, 22W(Heater on)
Working Environment -40ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10 (optional)

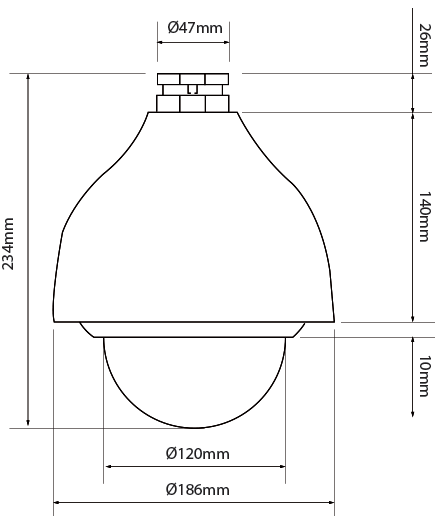

Dimensions Φ186mm×234mm
Weight 2.3Kg
