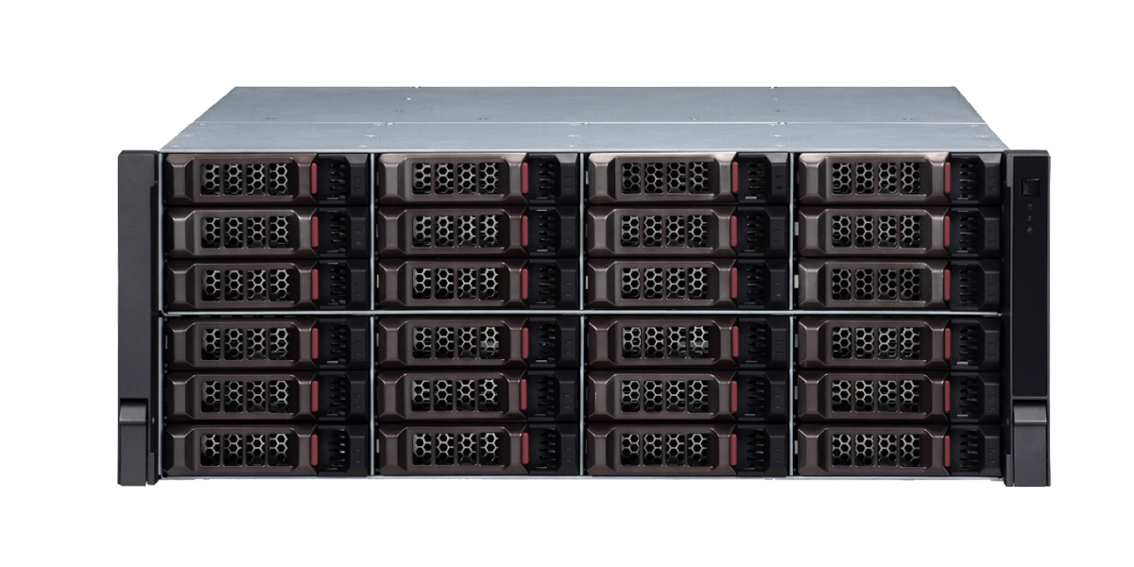

512 Channel Embedded Video Storage - ES-36512S
512 Channel Embedded Video Storage - ES-36512S
Model : ES-36512S

Features

  • Dual controller architecture, ensure the system reliability
  • 64-bit high-performance multi-core processors, ensure the massive data processing stability
  • Modular、poll-out、Cablese Design,keep system easy-maintainability
  • Support SAS multiple cascade,external SAS interface bandwidth bi-directional 192Gbps,ensure the system storage capacity expansibility
  • 36 HDDs in Single device,single system up to 240 HDDs, capacity up to 1440TB
  • Up to 4-1000Mbps Ethernet ports, and 2-10000Mbps Ethernet ports
  • Support 3.5 inch, 2.5inch SAS/SATA (1T/ 2T/ 3T/ 4T/ 6T) HDDs, which can mixed different capacity HDDs
  • Support HDD hot-swap, online replacement, online expansion
  • Support standard iSCSI protocol and video stream direct recording
  • Under video stream direct record mode, support 1024Mbps video recording and 128Mbps network playback
  • Under video stream transmit mode,support 4096Mbps front-end access; 4096Mbps network transmit
  • Under IPSAN working mode,storage bandwidth ≥2.4Gbps
  • Support RAID0/ 1/ 5/ 6/ 10/ 50/ 60/ JBOD, hot-spare, ensure the secutrity of storage data
  • Support standard protocol such as Onvif/ GB28181, ensure the compatibility with different front-end vendor
  • Provide WEB configuration and management, easy to setup
  • Optimize software and hardware of surveillance functions, also support other surveillance products as a complete solutions
  • Completely standard equipment, compatible with various software platform

Technical Specifications

Controller Single Controller
Memory 4G Standard, up to 128G
SAS interface 1 SAS interfaces
1000 Mbps Ethernet port 1 management port,4 data port
Expansion 4-1000Mbps Ethernet port or 2-10000Mbps Ethernet port
USB 2 USB3.0
Serial 1 RS232
HDD compatibility Support 1TB / 2TB / 3TB / 4TB / 6TB HDD
Support mixed SATA HDDs,support SSD & 2.5 inch HDD
Power redundant Dual power supply redundant
Main processor 64 - bit high-performance multi-core processors
Operating System Embedded LINUX
User interface WEB
IPSAN mode Support IPSAN direct recording storage
IPSAN function Support logic volume dynamic online expansion
Network protocol Support RTP/RTCP/RTSP/UDP/HTTP/NTP/SNMP/iSCSI/SMB/NFS/FTP protocol
Streaming media protocol Support access protocol such as Onvif,GB28181
Frame extracting storage Support frame extracting storage,time and frame extracting rate can be settled
Cluster service Support N+M cluster
Performance index Up to 512ch(1024Mbps) front-end access、storage、transmit,64ch(128Mbps)network playback
Hard disk 36 HDDs, expandable up to 240 HDDs
HDD install Independent HDD holder
HDD Hot Standby support hot-swappable, on-line replacement
HDD using mode Single HDD、RAID0、1、5、6、10、50、60、JBOD、Hot-Spare
HDD management Non-working HDD sleep, in favor of heat dissipation and power consumption reduction, prolong life-span of HDD
HDD processing Support HDD bad tracks mapping,extend life-span of HDDs
HDD status inspection Support HDD preview before use、periodic inspection during use
One-click RAID RAID Support one-click set RAID immediately
RAID set-and-play RAID can be used directly after settled
RAID reset Support adjust RAID reset speed dynamically,ensure system load balance
RAID write synchronous Support RAID write synchronous, ensure to data safety
Video playback Support WEB-client video playback;support search by second; adjustable playback speed
Port property Support Ethernet-port binding or mode such as load balance, fault-tolerant
Power supply 100V~240V, 47~63Hz, 3 power(2+1 Redundancy) support hot-swap
Fan flabellum diameter:80mm, support hot-swap
Power Consumption 200-400W(include HDD)
Working temperature 0℃~40℃
Working Humidity 10%~80%(non-condensation)
Storage Temperature -20℃~70℃
Storage Humidity 5%~90%(non-condensation
Working Elevation -60m~5000m
Chassis Hot-dip galvanized steel sheet(1.2mm thickened) High-precise aluminum alloy slide Self-patent drawer-type HDD rack
Dimension(W×D×H) 494mm*483mm*175mm (with lug)
Weight 27Kg(exclude external packing, exclude HDD)
Mounting 19 feet standard rack-mounted
